Regular price
/

$124.99 USD & FREE Shipping.
  • HVAC Kit with testers for the HVAC Professional; Cat. No. CL320 HVAC Digital Clamp Meter with AC Auto-Ranging, Cat. No. IR07 Dual IR/Probe Thermometer, and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight

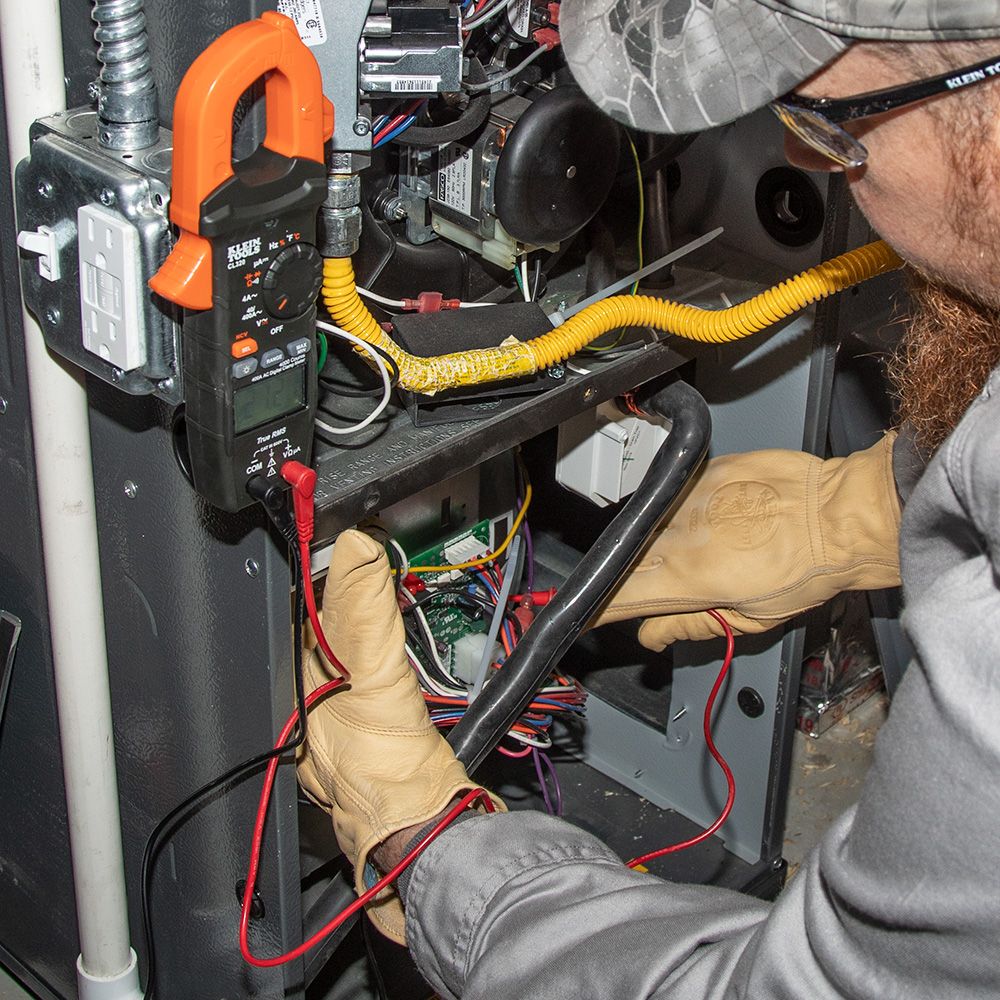

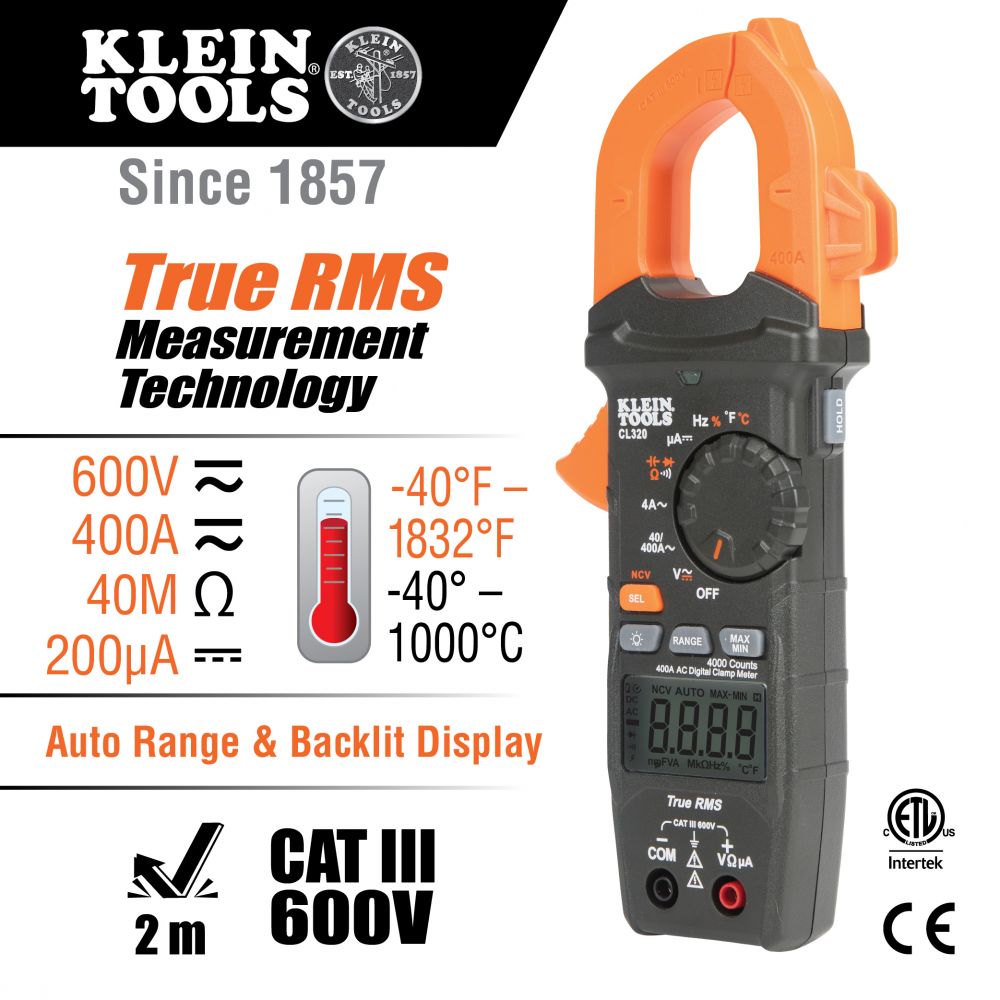

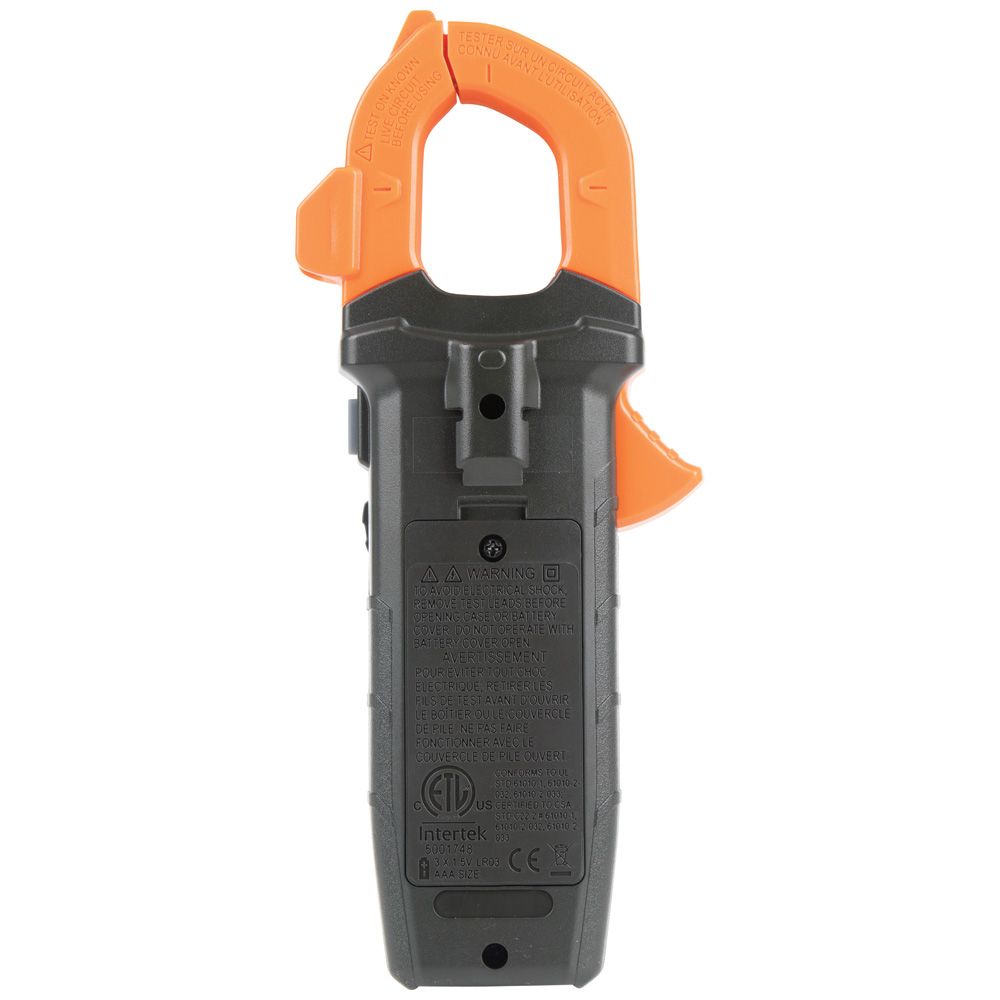

  • HVAC Clamp Meter Cat. No. CL320 with TRMS measurement technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature

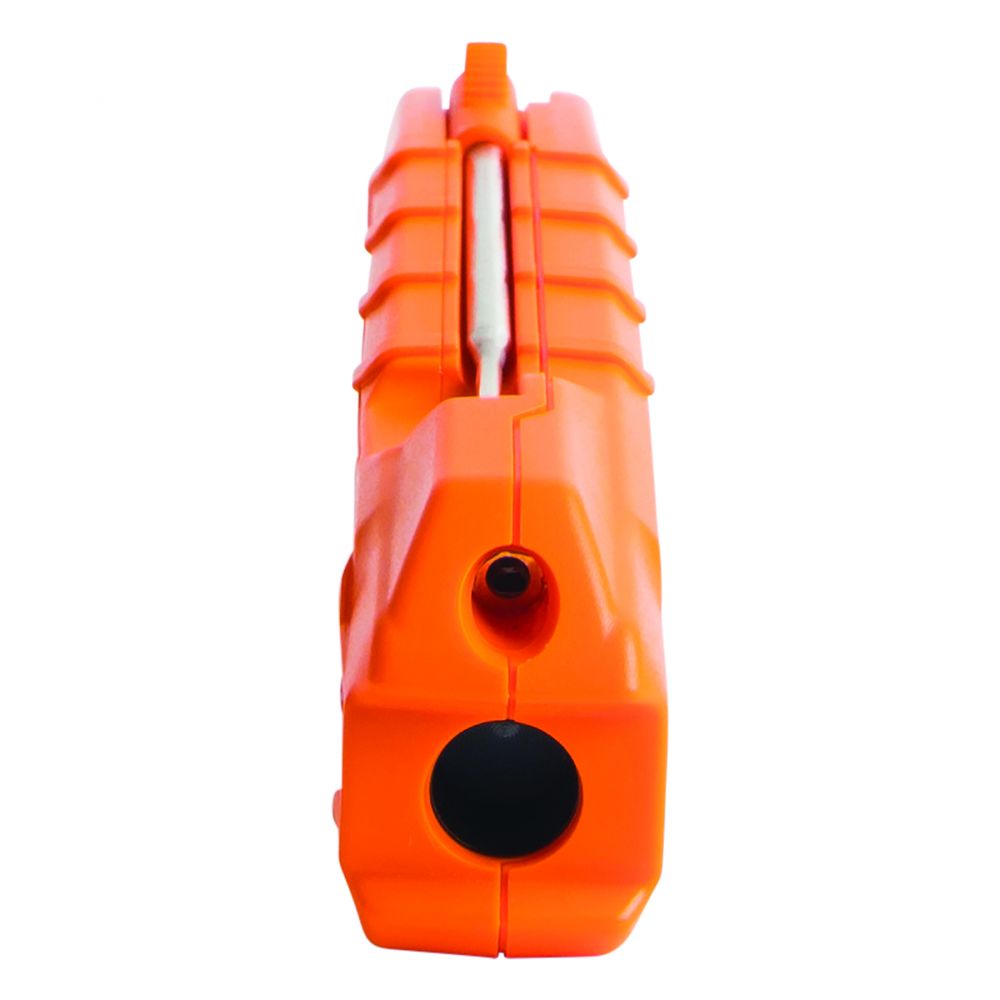

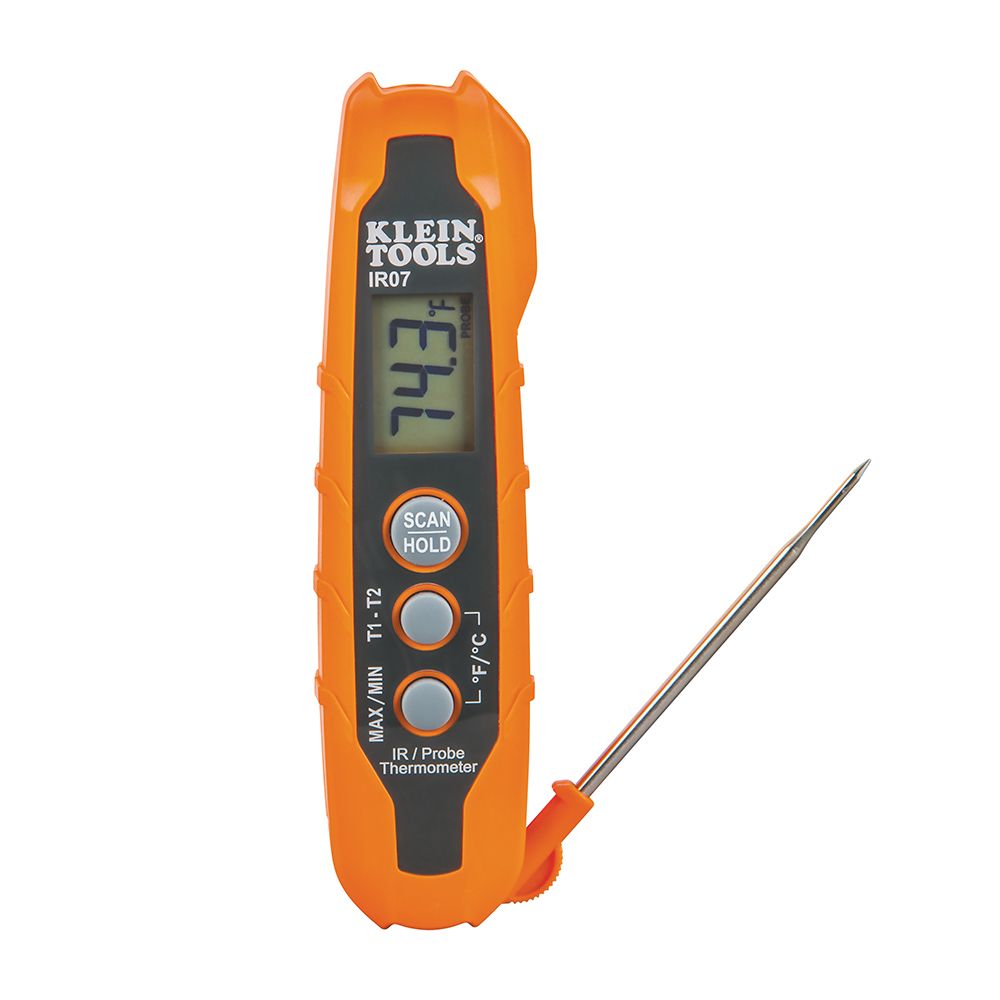

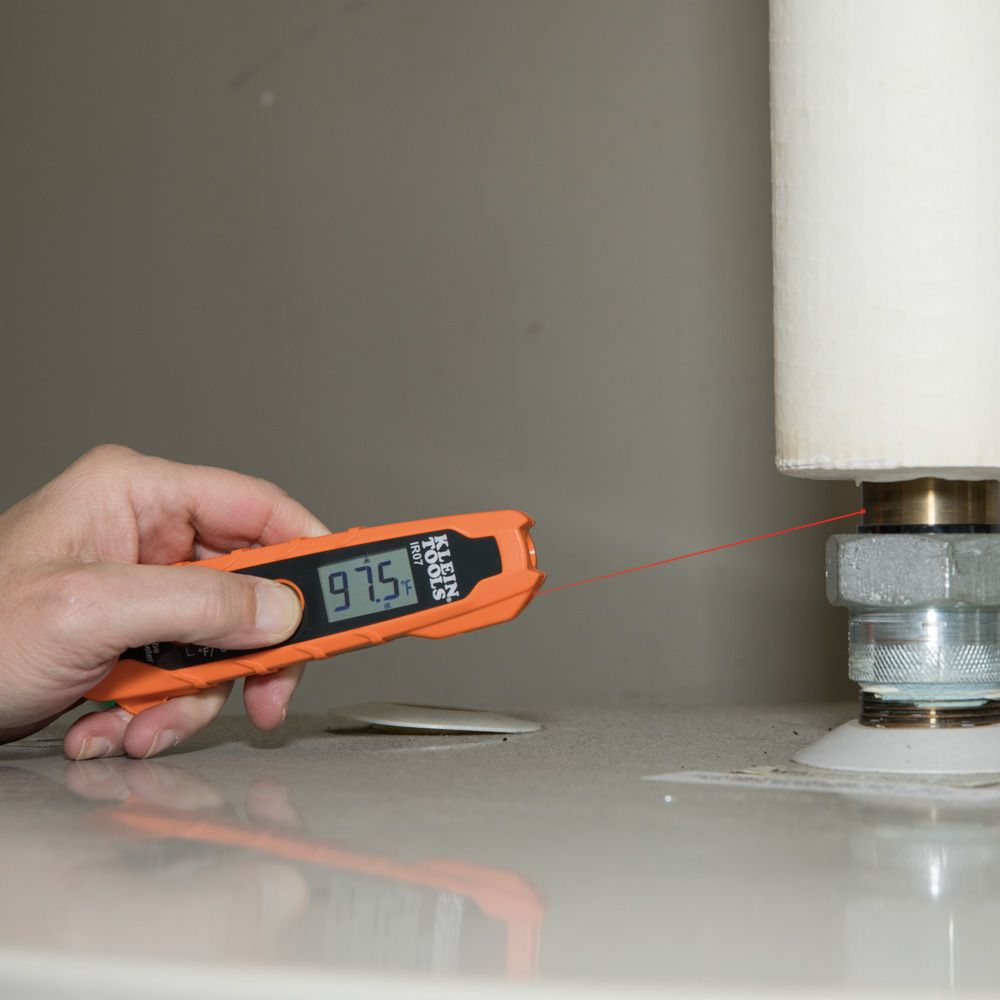

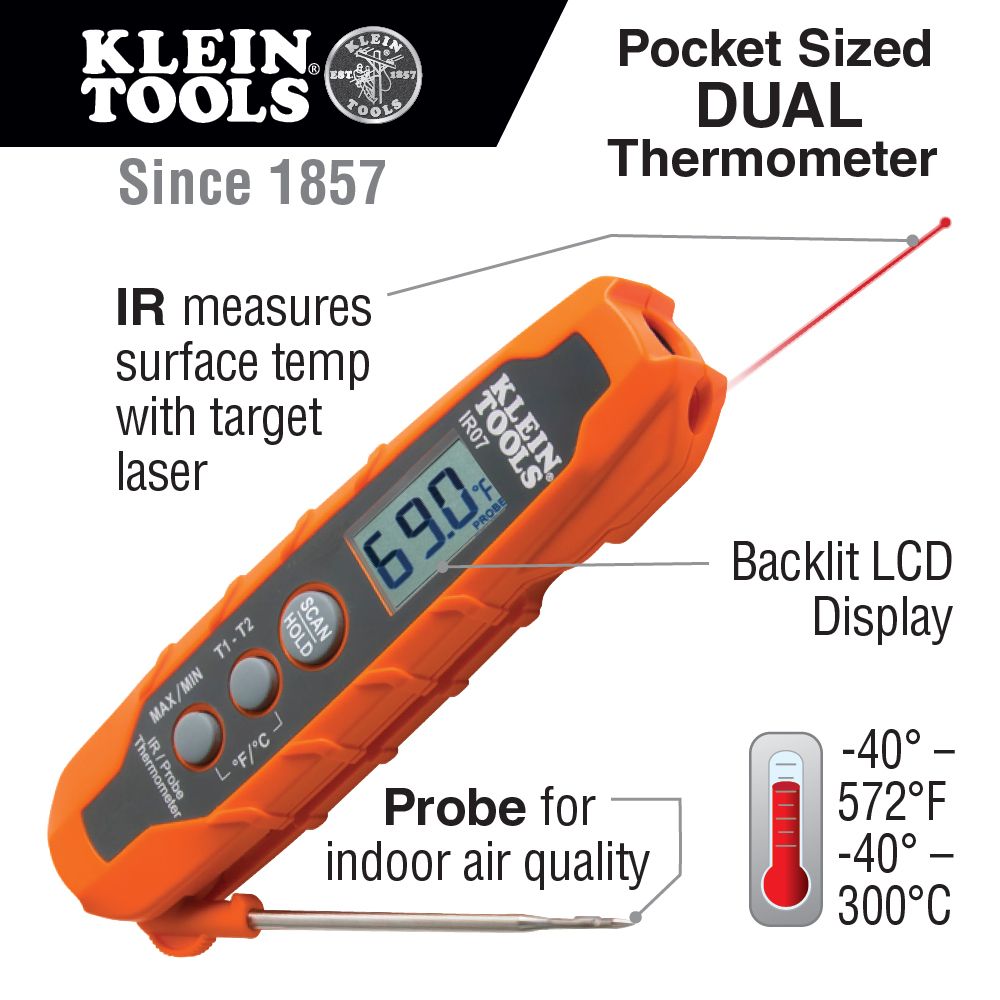

  • Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)

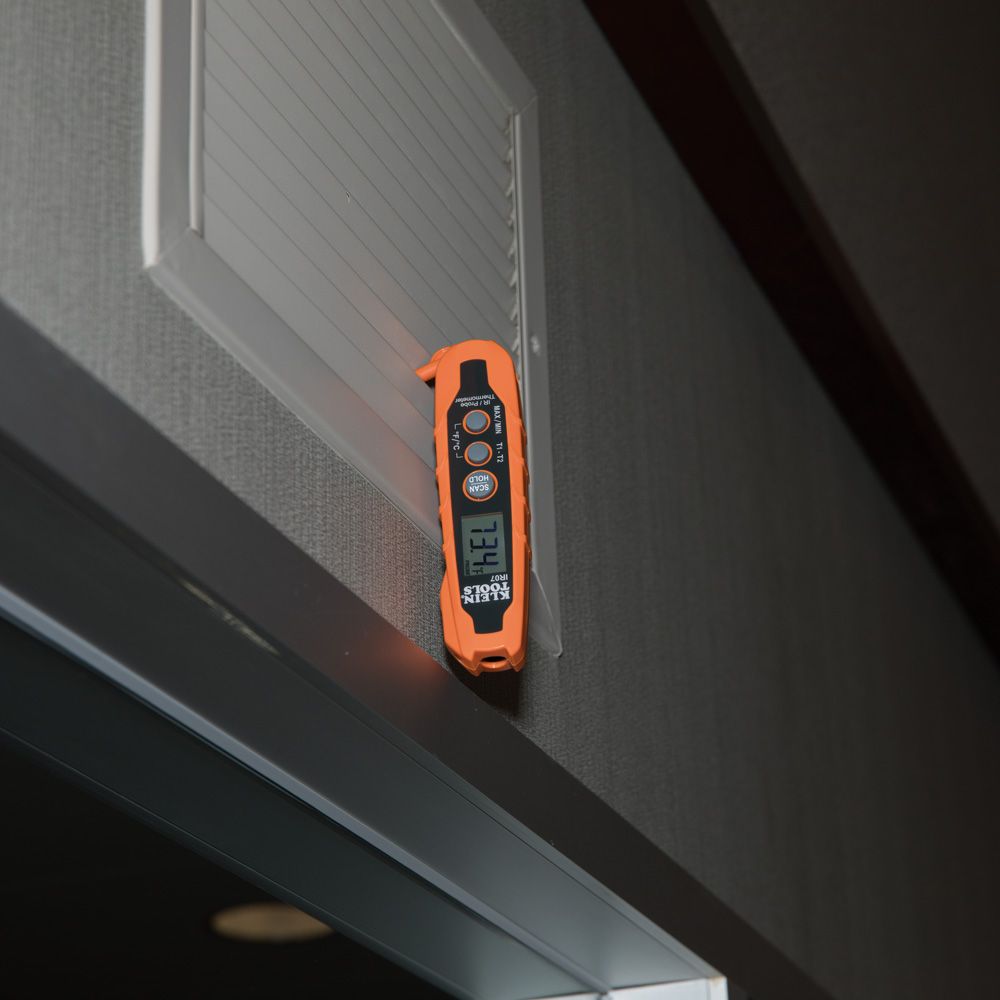

  • Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures; IR07 is not a medical device and is NOT intended for use on people or animals

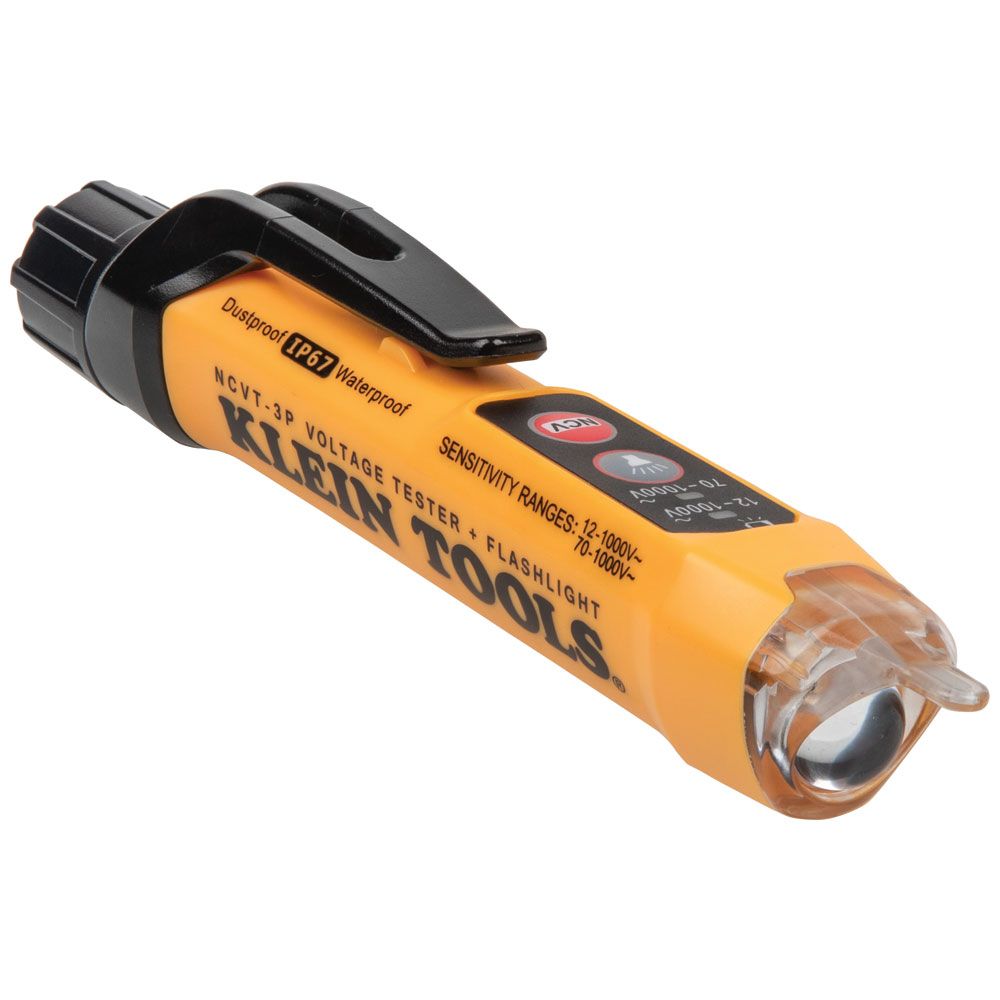

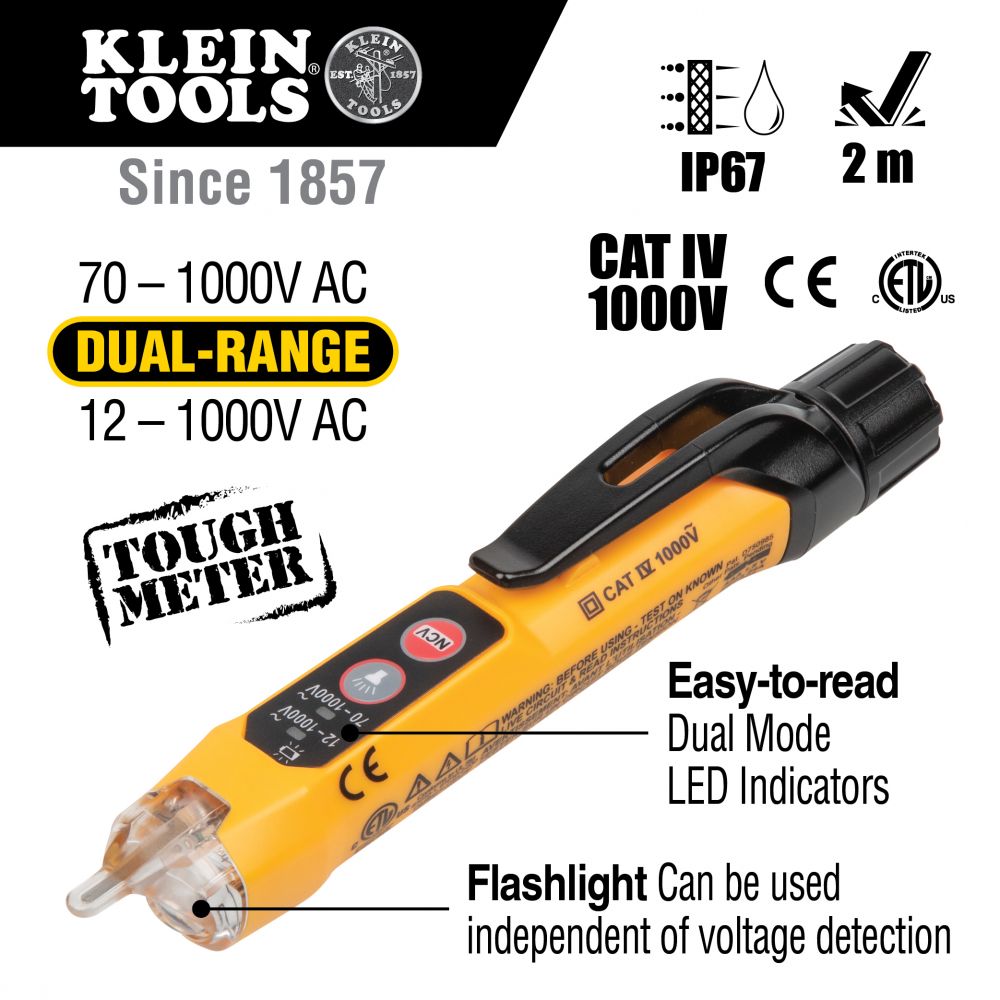

  • Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications; detects voltage with simultaneous visual and audible voltage indicators
Overview

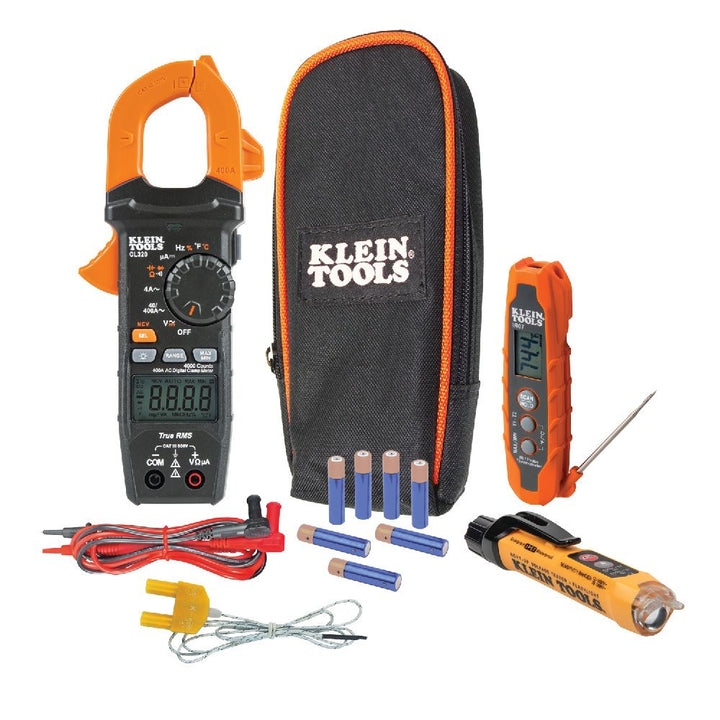

Klein Tools HVAC Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.

Klein Tools CL320KIT HVAC Kit

Specifications
General Information
Brand
Klein Tools
Part Number
CL320KIT
Product Type
HVAC Kit
Application
HVAC Electrical and Temperature Testing
What's Included
Cat. Nos. CL320, IR07, and NCVT3P, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, 7 x AAA Batteries, Storage Pouch
Packaging
Retail
UPC
092644693496
California Residents
Proposition 65 Warning
Physical Characteristics
Material
ABS/Electronics
Length
8.45'' (21.5 cm)
Width
3.5'' (8.9 cm)
Height
1.5'' (3.8 cm)
Weight
0.71 kg
1.57 lb
Details
Measurement Standard
Cat. No CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified; Cat. No. NCVT3P: CAT IV 1000
Functions
TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
Features
HVAC Kit with testers for the HVAC Professional; Cat. No. CL320 HVAC Digital Clamp Meter with AC Auto-Ranging, Cat. No. IR07 Dual IR/Probe Thermometer, and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight
HVAC Clamp Meter Cat. No. CL320 with TRMS measurement technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)
Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures; IR07 is not a medical device and is NOT intended for use on people or animals
Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications; detects voltage with simultaneous visual and audible voltage indicators
Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
AC Voltage
600V
DC Voltage
600V
Current
400 A AC
Voltage
Cat. No. CL320: 600V AC/DC; Cat. No. NCVT3P: 1000V AC
Capacitance
4000 µF
Resistance (Ohms)
40MO
Frequency
10 Hz to1 MHz
Batteries
7 x AAA
Temperature Range
-40° to 1832°F (-40° to 1000°C)
Video
Klein Tools family of automatically ranging, entry-level clamp meters measure current and voltage, as well as a range of additional measurements to meet different applications.

The Klein Tools IR07 is a dual IR (infrared) thermometer and probe thermometer. This rugged pocket thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius) for both IR and probe measurements.
