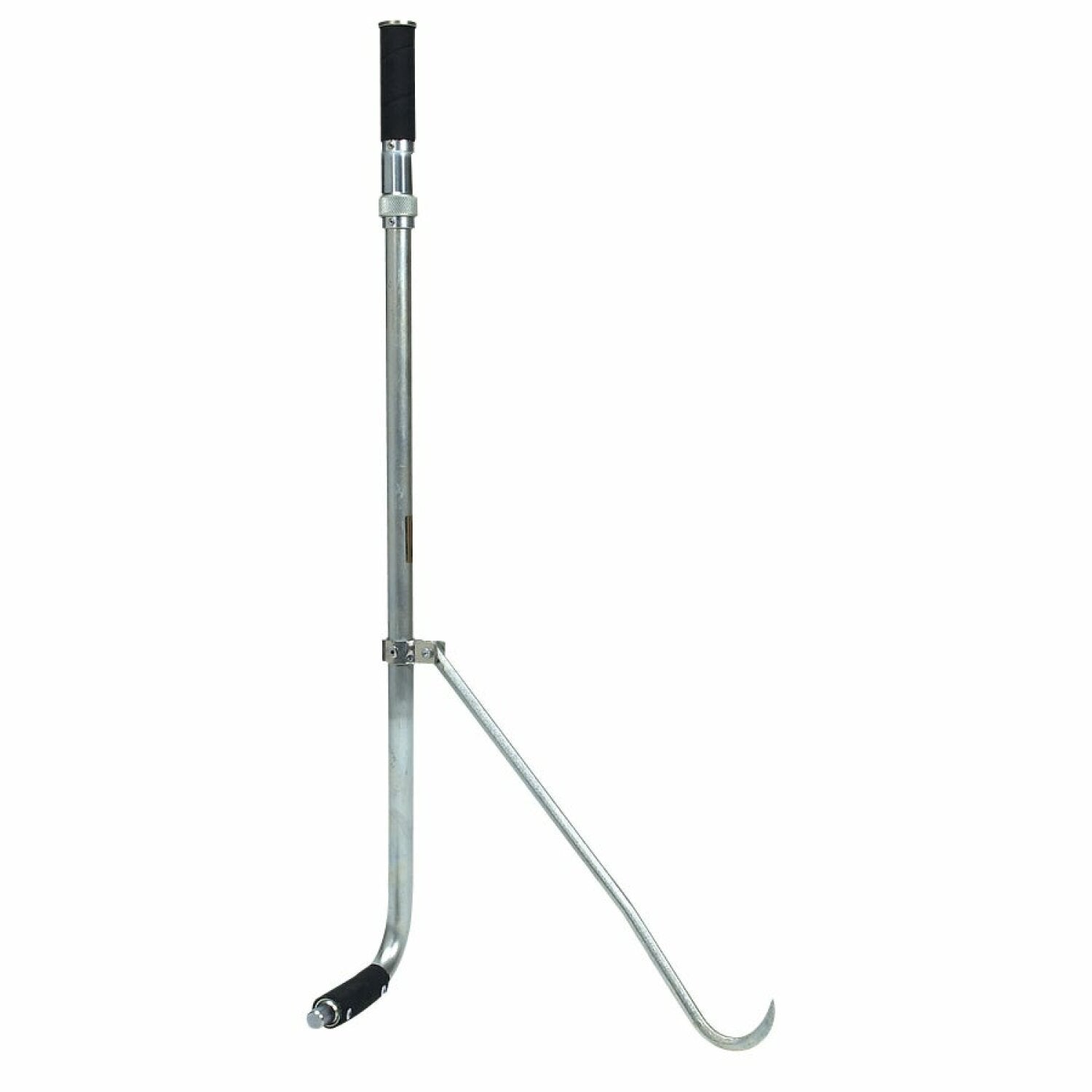

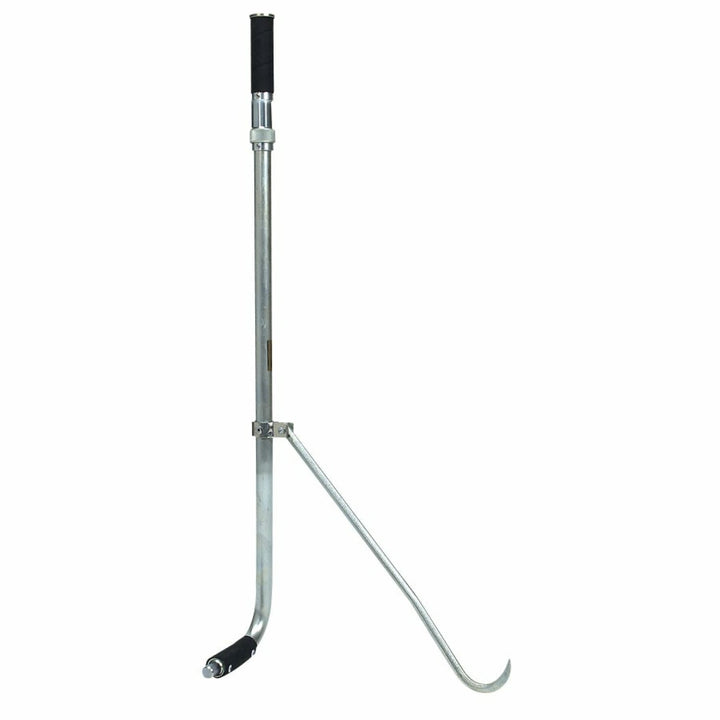

GMP 01368 Manhole Cover Lifter
General Machine Products logo

GMP 01368 Manhole Cover Lifter

/
$289.99 USD & FREE Shipping.
Extended Handling May Be Required
  • The long handle provides useful leverage when removing and replacing manhole covers

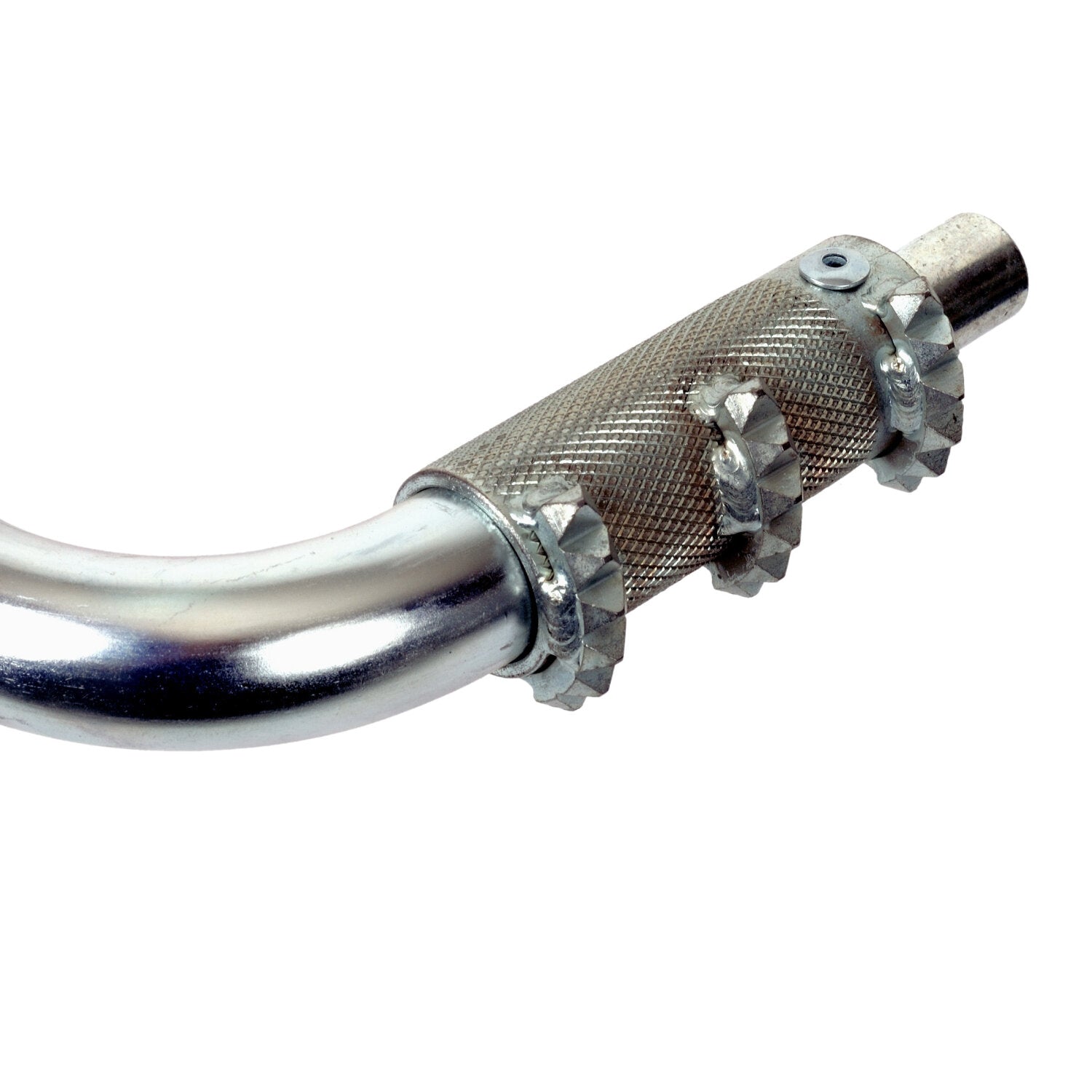

  • Each tool is made of an all-steel handle, sleeve, shank, foot and heat-treated alloy steel hook. Zinc-plating is then applied to fight rust and rubber grips are placed on both handle and foot to prevent slippage
  • The open end of the hook can be locked inside the handle as an added safety feature when not being used
Overview

This ingenious tool simplifies the removal and replacement of typical Telephone manhole covers while decreasing the strain on the user.

Brand img

GMP 01368 Manhole Cover Lifter

Specifications
General Information
Brand
General Machine Products
Part Number
01368
Product Type
Manhole Cover Lifter
Packaging
Retail
UPC
810073270015
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
3.86 kg
8.50 lb
Color
Metallic
Finish
Zinc-Plated
Material
Alloy Steel
Details
Features
The open end of the hook can be locked inside the handle as an added safety feature when not being used.

When preparing to remove a cover make sure it’s not locked with a bolt or other locking device. When handling a cover, keep feet solidly placed and clear of the cover should it drop.

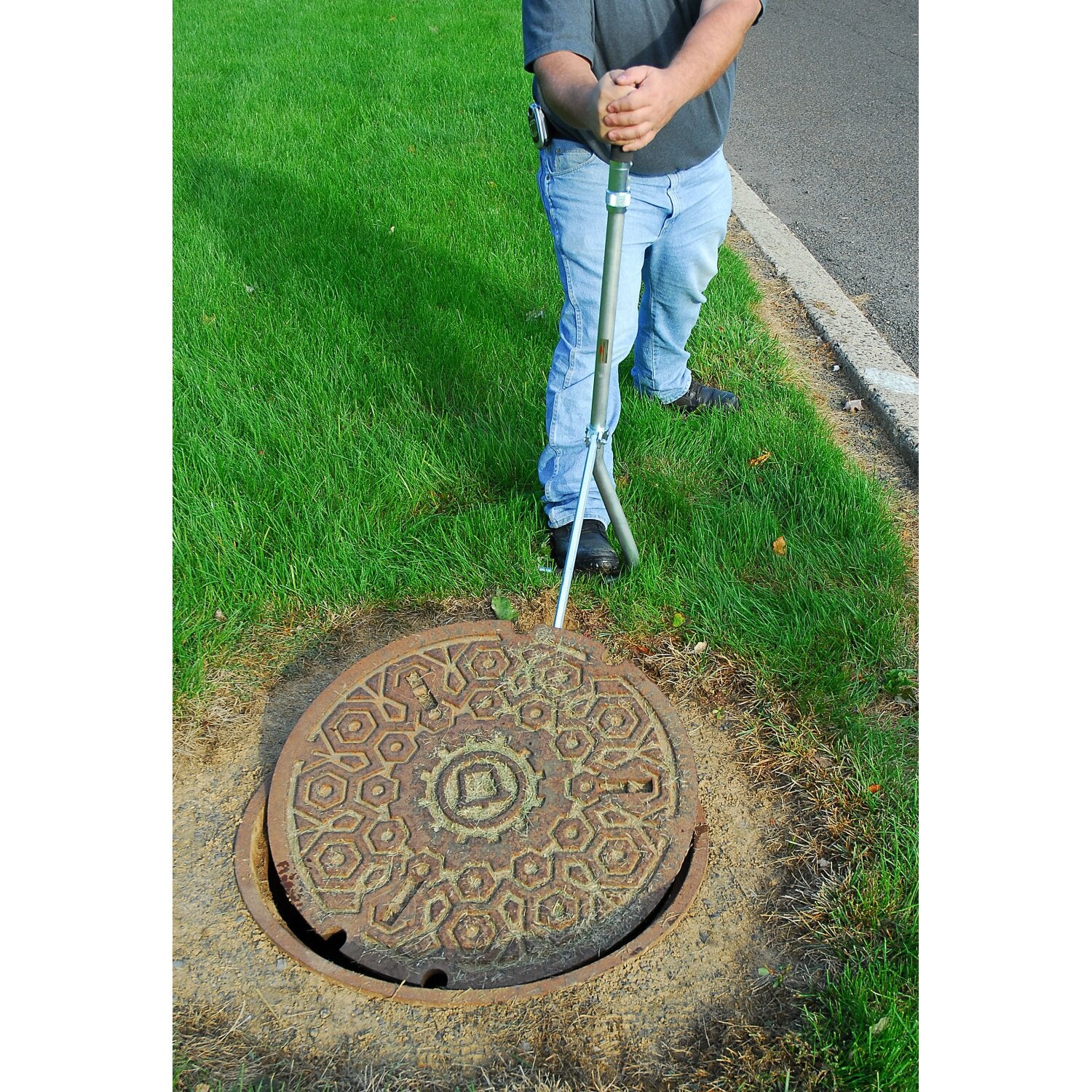

To use, remove the hook from the handle by rotating the knurled sleeve. Insert the hook tip into one of the hook holes in the cover making certain to insert the hook deep enough to clear the rib on the underside of the cover.

Set the foot of the tool on the ground about 12 in. (30cm) from the cover and place a foot on the handle to hold it in place.

Taking a working position with knees slightly bent and unseat the cover by pulling on the handle.

Re-position the foot of the tool away from the cover and continue to make additional pulls until the cover is clear from the frame and will not interfere with the work to be done. Replacing the cover can be done in a similar manner by moving it until the cover seats itself in the frame.
Why would you use this tool for ?
About manufacturer
General Machine Products

Located in Suburban Philadelphia, Pennsylvania, General Machine Products (GMP) is a family-owned manufacturer that produces a diverse range of products for the telecommunications, power utility, cable television industries, and their associated contractors. GMP's offerings cover various applications, including the installation of copper conductor, coaxial, and fiber cable in both aerial and underground settings. Renowned within the industry, GMP's portfolio encompasses essential tools such as aerial cable lashing machines, fiber optic cable pullers, blowing machines, cable reels and rollers, cable cutters, as well as unique modular plug pressing tools and specially-designed equipment for the data and telecommunications market. With more than 600 distinct products, GMP remains at the forefront of the industry.
