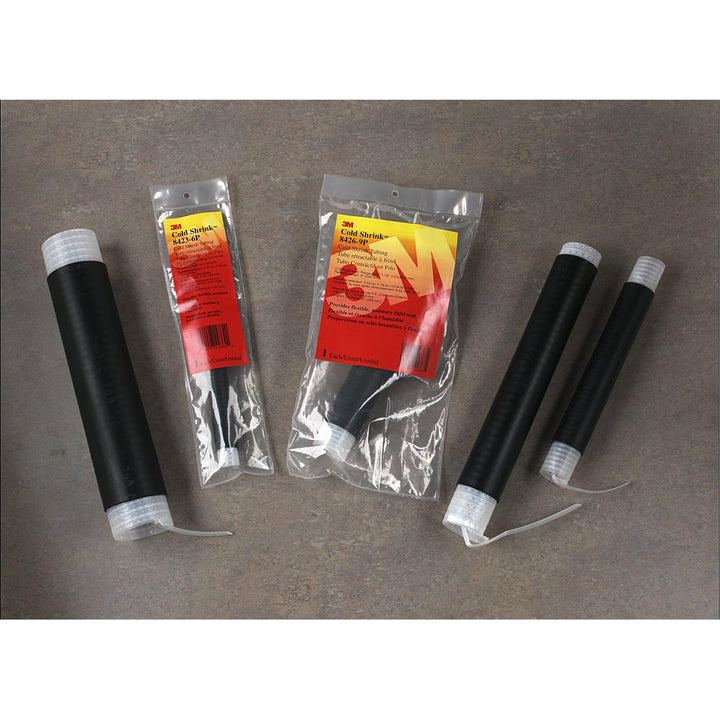

3M Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)
3M Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)
3M Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)
3M Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)
3M Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)
3M Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)
3M Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)

3M Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)

Regular price
/

$25.99 USD & FREE Shipping.

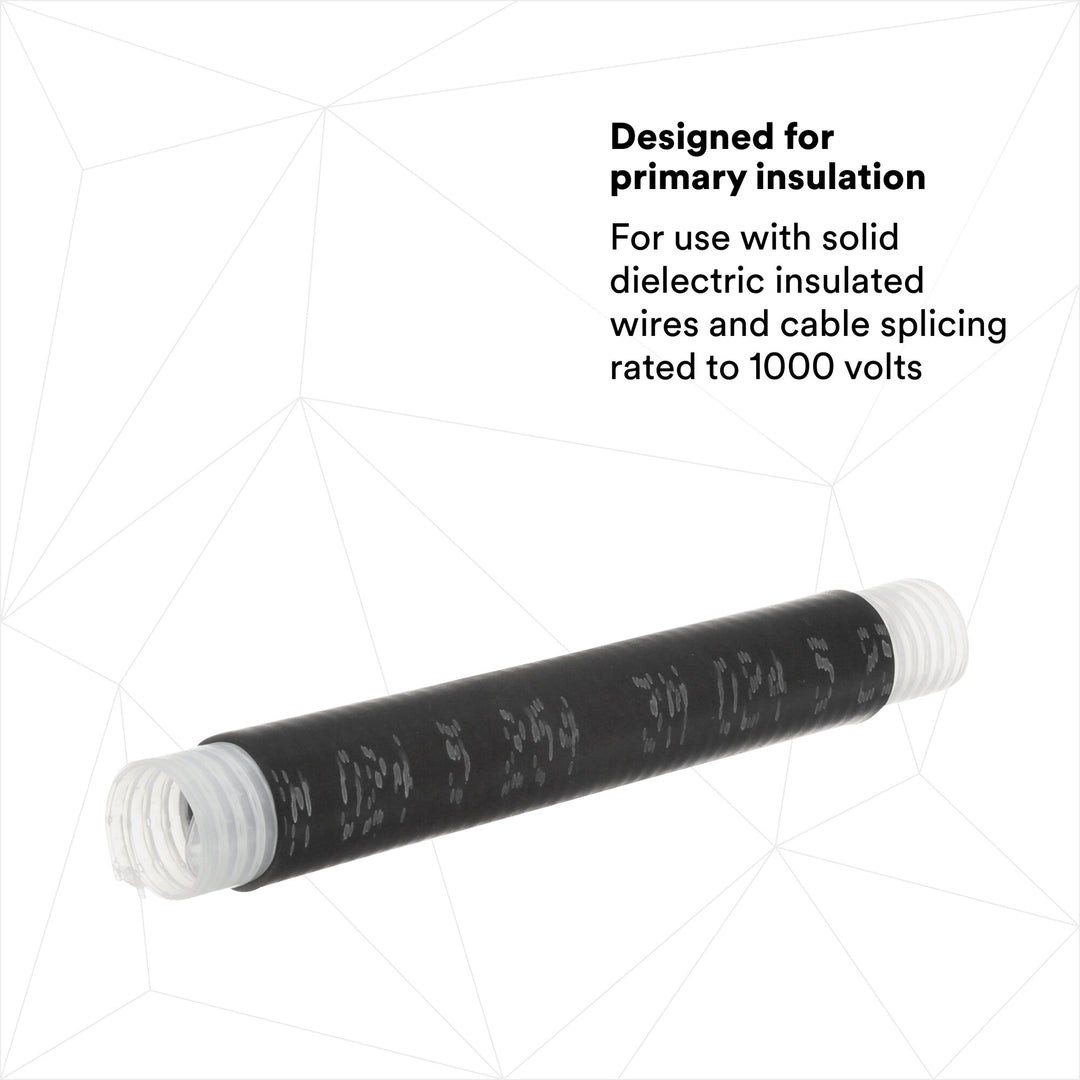

  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts

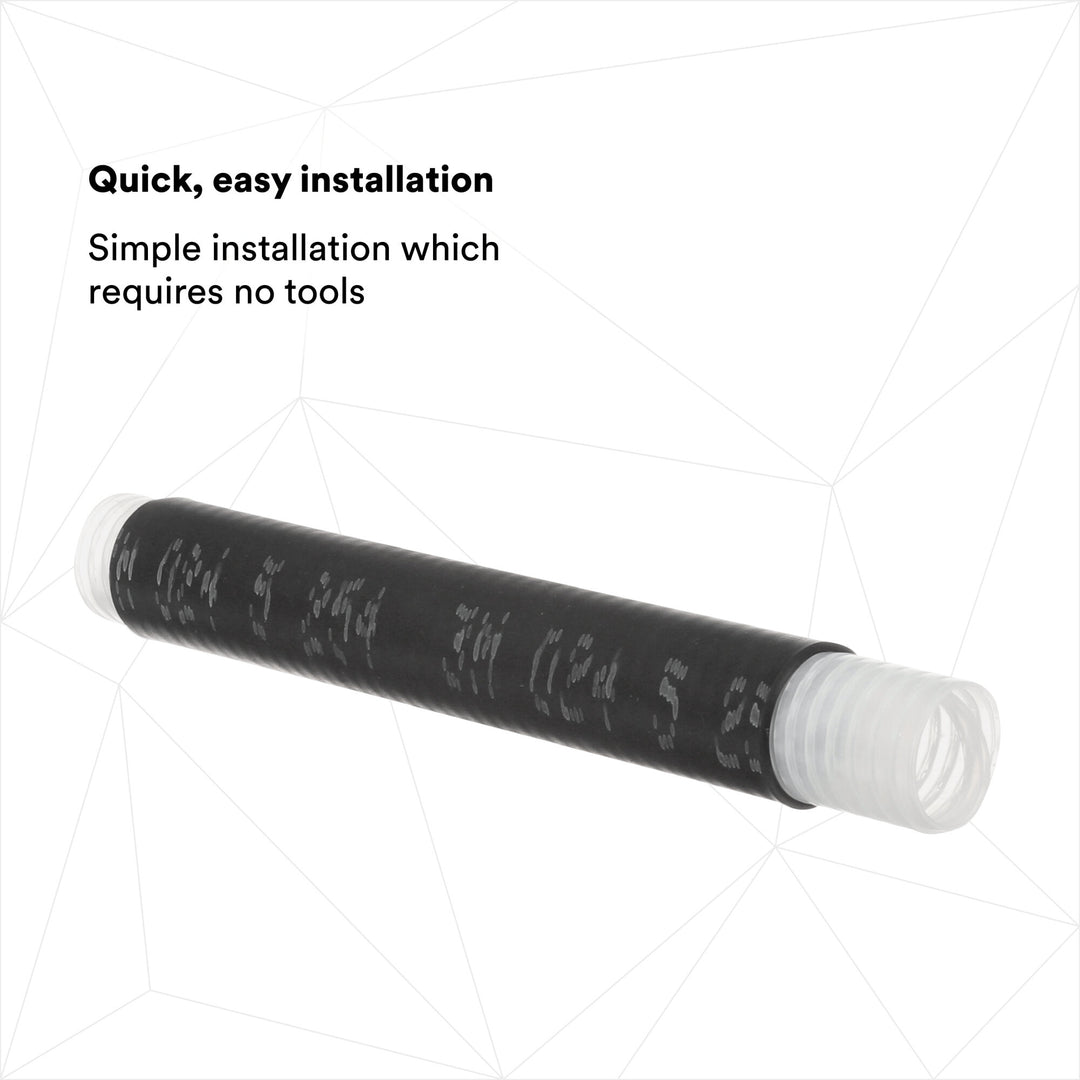

  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts

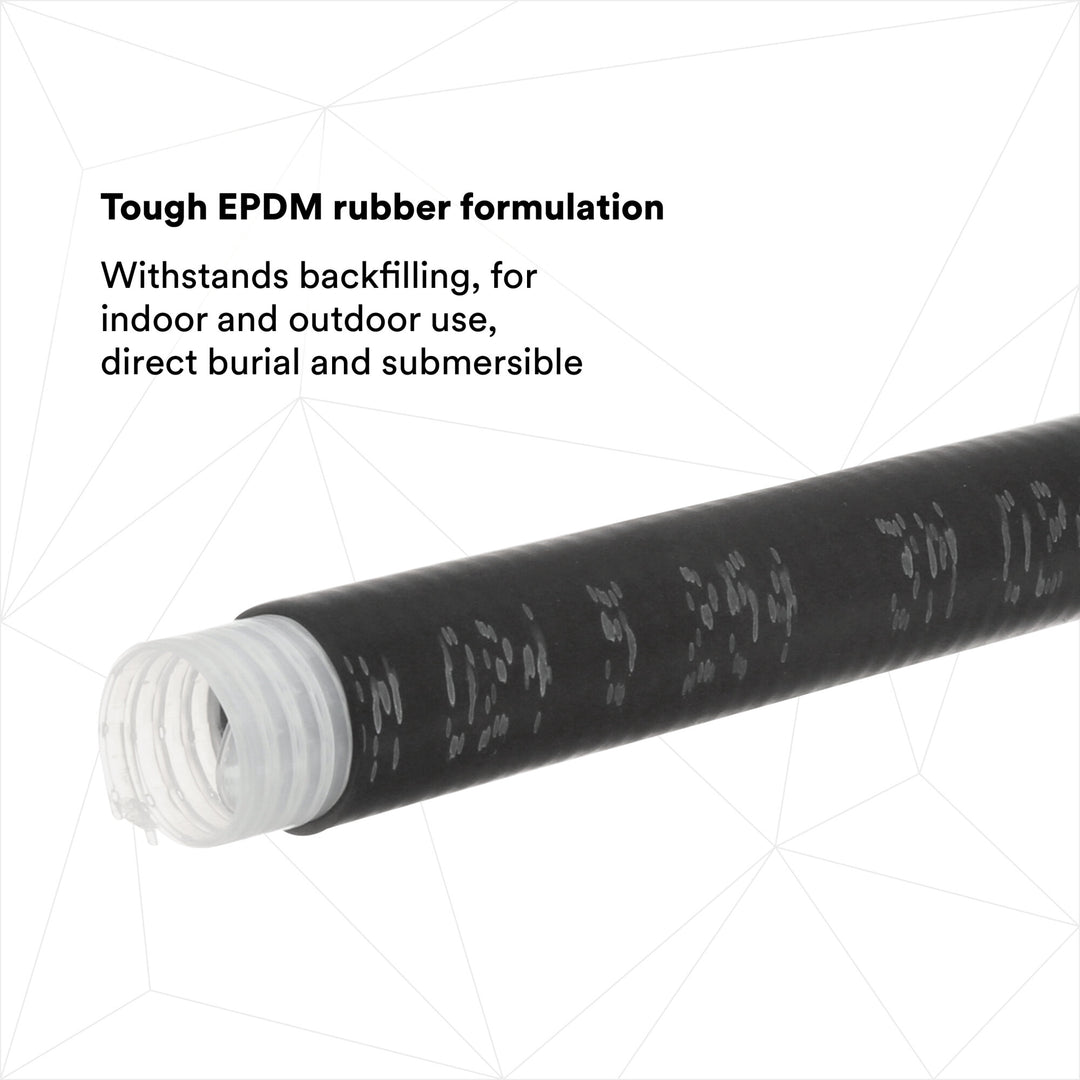

  • Made of black EPDM rubber
  • Made of EPDM rubber which contains no chlorides or sulfur

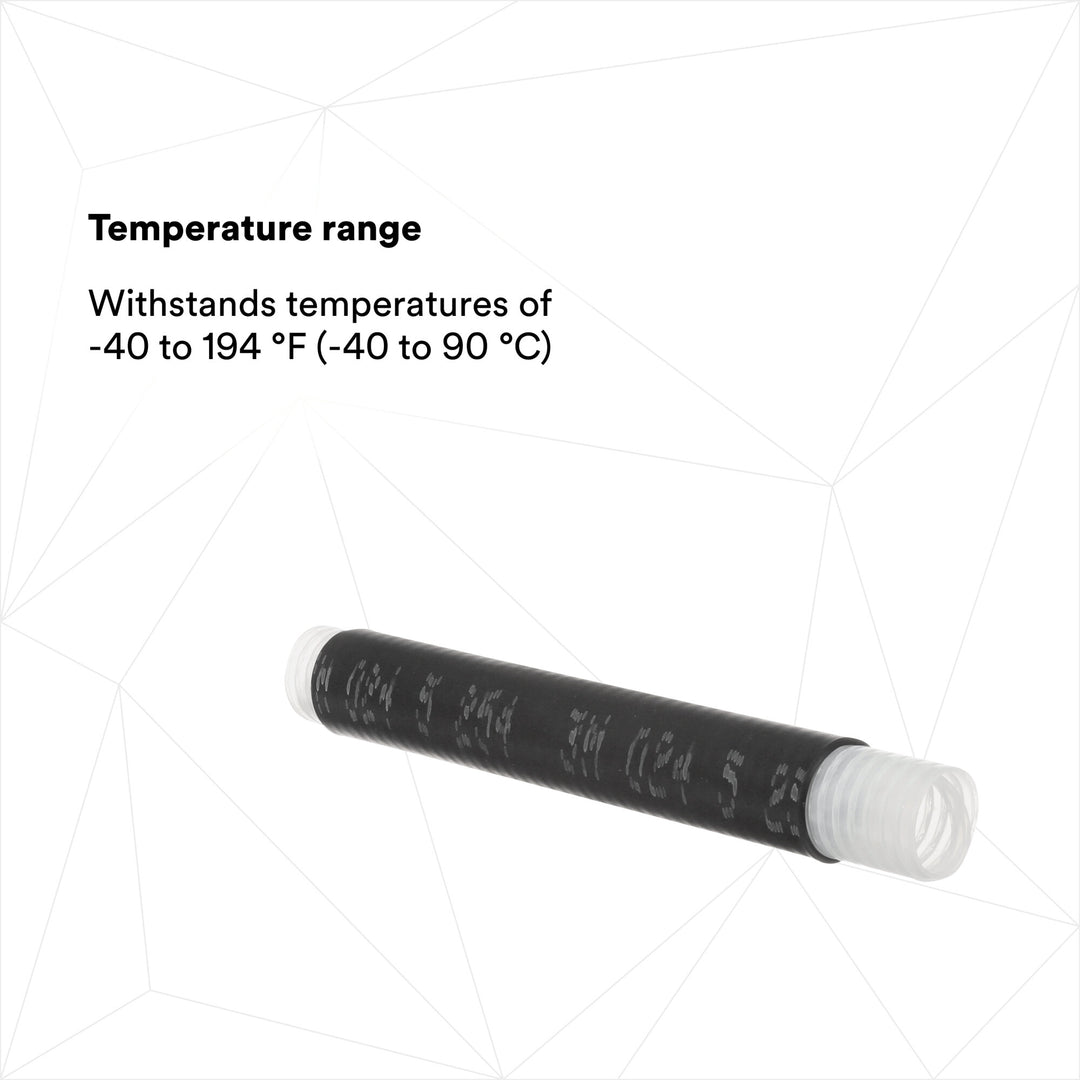

  • Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
  • Environmental sealing for communication and other non-electrical applications
Overview
Insulate your wires more effectively with the 3M Cold Shrink Connector Insulator 8420 series. This open-ended tubular sleeve is moisture-proof, which allows you to electrically insulate applications rated up to 1 kV. The tough and durable EPDM rubber material resists ozone, acids and alkalis, and can withstand temperatures of -40 to 194 degrees F (-40 to 90 degrees C).

3M Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)

Specifications
General Information
Brand
3M™
Model
Cold-shrink
Product Type
Cold Shrink
Splice Type
Cold Shrink
Country Of Origin
United States
Sold As
Each
Lead Time
2 days
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
2 AWG
Conductor Sizes (Metric)
35 mm²
Inner Diameter After Shrink (Imperial)
0.24 in
Inner Diameter After Shrink (Metric)
6.1 mm
Inner Diameter Before Shrink (Imperial)
0.941 in
Inner Diameter Before Shrink (Metric)
23.9 mm
Maximum Conductor Size (Imperial)
19.93 kcmil
Maximum Conductor Size (Metric)
10.1 mm²
Maximum Connector Length
3.0 in
Maximum Connector Length (Metric)
76.2 mm
Maximum Operating Temperature (Celsius)
90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
194 Degree Fahrenheit
Minimum Conductor Size (Imperial)
2 AWG
Minimum Conductor Size (Metric)
35 mm²
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Operating Temperature (Celsius)
-40 up to +90°C
Overall Diameter (Metric)
23.9 mm
Overall Length (Imperial)
8 in
Overall Length (Metric)
203.2 mm
Relaxed Tube Length
8 in
Relaxed Tube Length (Metric)
203.2 mm
Voltage
1 kV
Voltage Application
Low Voltage
Wall Thickness After Shrinking
3.8 mm
Maximum Conductor Size Imperial
19.93 kcmil
Maximum Conductor Size Metric
10.1 mm²
Minimum Conductor Size Imperial
2 AWG
Minimum Conductor Size Metric
35 mm²
Operating Temperature Celsius
-40 up to +90°C
Overall Length Imperial
8.0
Volume
41.06 cubic inch
672.88 cm3
Weight
2.43 oz
68.94 g
Other Details
Cable Shielding
UniShield®
Halogen Free
No
Number Of Conductors
1
Shrink Ratio
2:1
With Inner Glue
No
Usage Information
Application
Insulation, mechanical protection, repair
Material and Composition
Conductor Material
Aluminum
Material
EPDM Rubber
Color and Appearance
Product Color
Black
Certifications and Standards
UL Approval
No
Packaging and Shipping
Case Quantity
10
