Regular price
/

$530.99 USD & FREE Shipping.

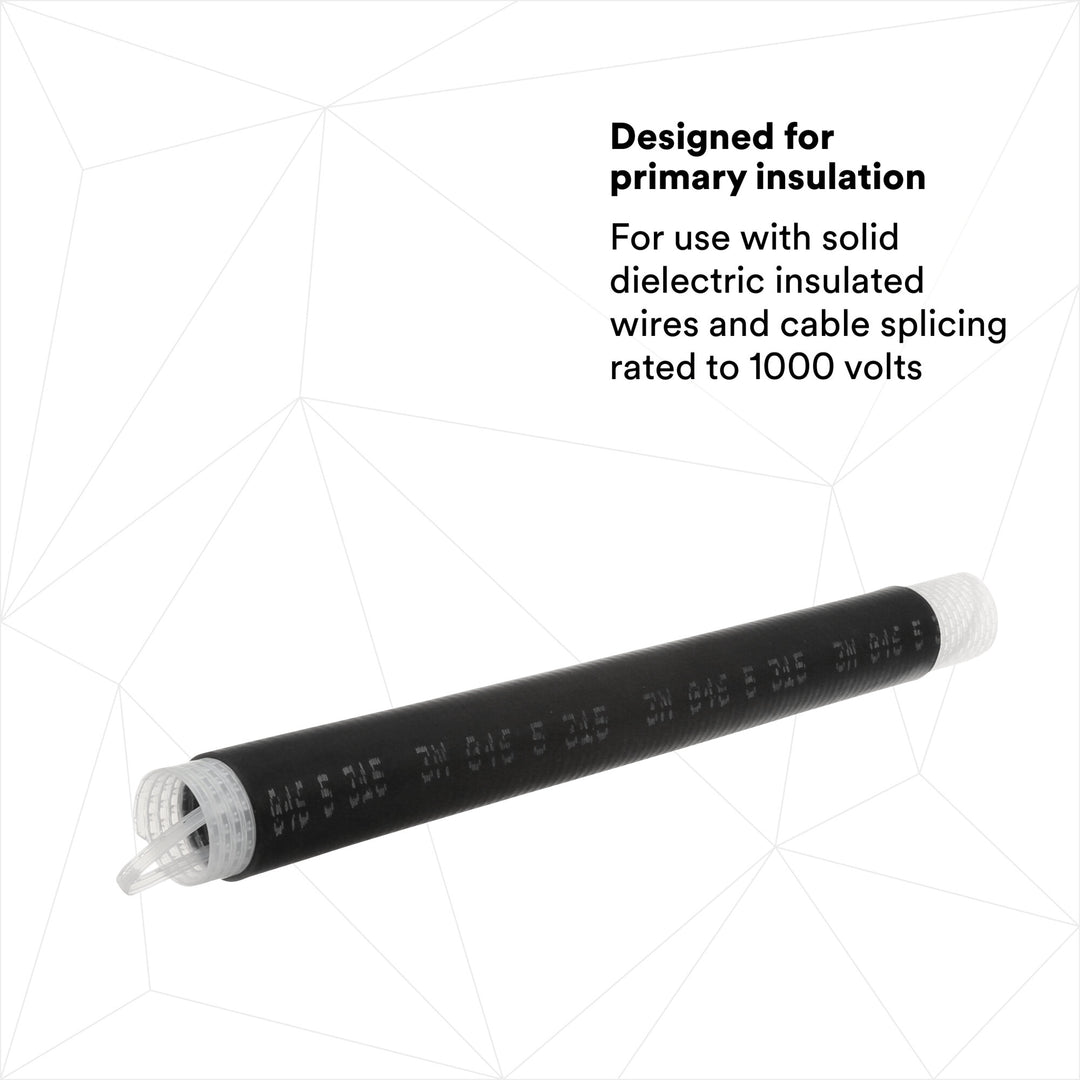

  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts

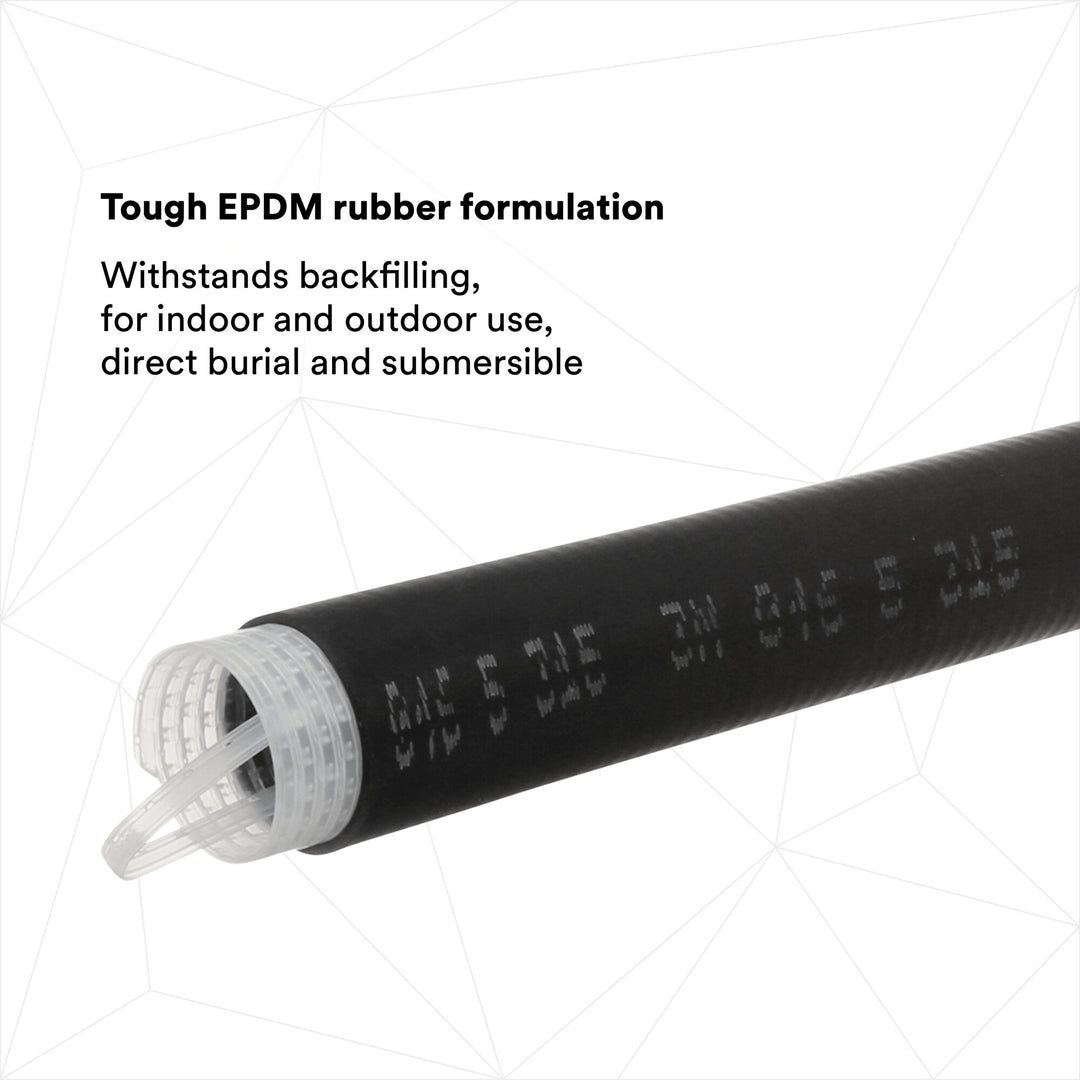

  • Made of black EPDM rubber
  • Made of EPDM rubber which contains no chlorides or sulfur

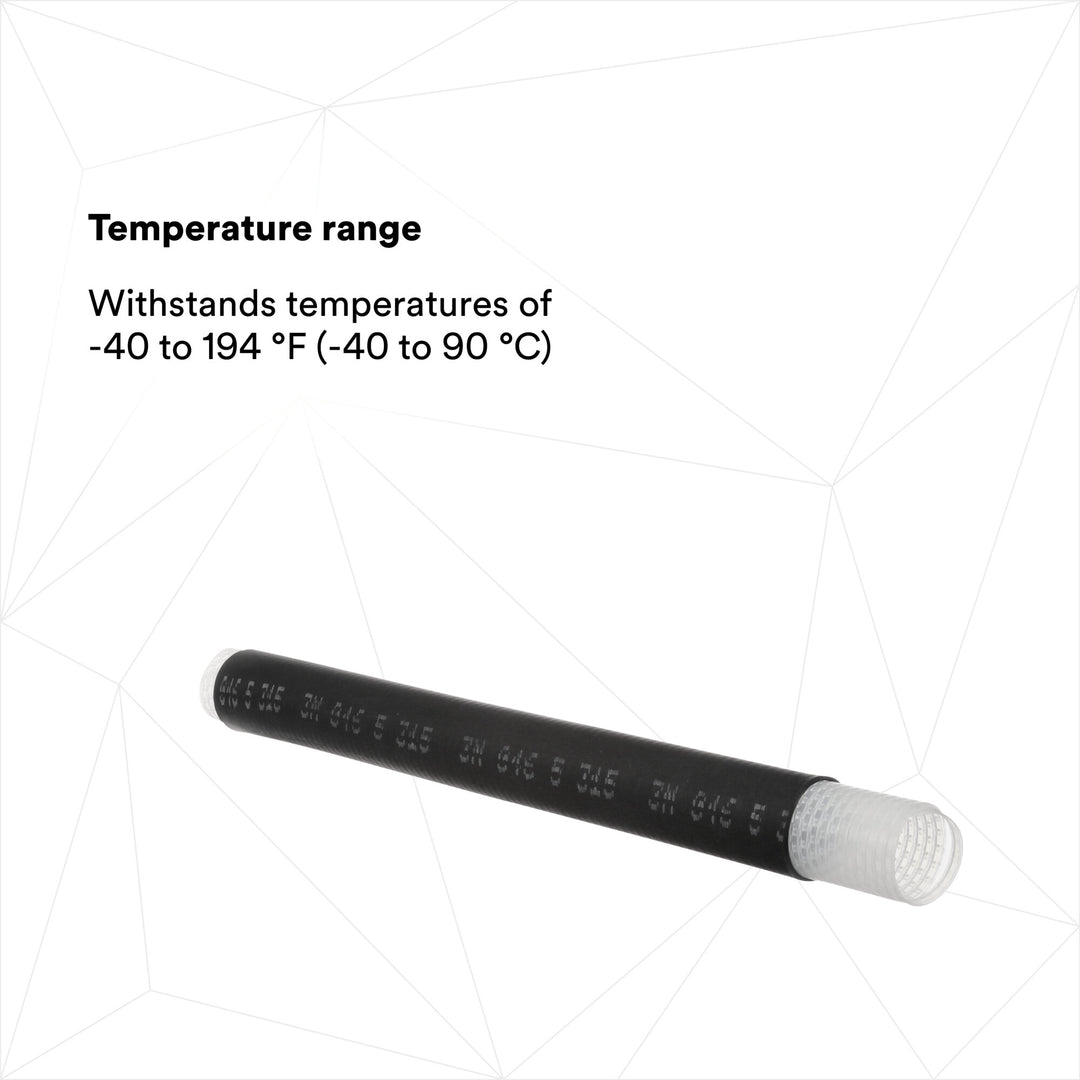

  • Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
  • Environmental sealing for communication and other non-electrical applications
Overview
Protect 1 kV-rated applications against damage caused by acids, alkalis and ozone by sealing them in the 3M 8420 Cold Shrink Connector Insulator. This open-ended tubular sleeve works with all solid dielectric insulated wires and cable splices to provide primary electrical insulation and environmental sealing in a range of operating temperatures from -40 to 194 degrees F (-40 to 90 degrees C).

3M Cold Shrink Insulator 8427-16, Tape/Wire/UniShield® Shielding, 1 kV,Standard

Specifications
General Information
Brand
3M™
Cable Type
Power Cable
Model
Cold-shrink
Product Type
Splice
Splice Type
Cold Shrink
Country Of Origin
United States
Sold As
Case
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
400 kcmil
Conductor Sizes (Metric)
185 mm²
Inner Diameter After Shrink (Imperial)
0.661 in
Inner Diameter After Shrink (Metric)
16.8 mm
Inner Diameter Before Shrink (Imperial)
1.382 in
Inner Diameter Before Shrink (Metric)
35.1 mm
Maximum Conductor Size (Imperial)
394 kcmil
Maximum Conductor Size (Metric)
200 mm²
Maximum Connector Length
12.0 in
Maximum Connector Length (Metric)
304.8 mm
Maximum Operating Temperature (Celsius)
90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
194 Degree Fahrenheit
Minimum Conductor Size (Imperial)
246 kcmil
Minimum Conductor Size (Metric)
125 mm²
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Overall Length (Imperial)
16 in
Overall Length (Metric)
406.4 mm
Relaxed Tube Length
16 in
Relaxed Tube Length (Metric)
406.4 mm
Voltage
1 kV
Voltage Application
Low Voltage
Maximum Conductor Size Imperial
394 kcmil
Maximum Conductor Size Metric
200 mm²
Minimum Conductor Size Imperial
246 kcmil
Minimum Conductor Size Metric
125 mm²
Overall Length Imperial
16.0
Width
9.57 in
24.3 cm
Height
9.29 in
23.6 cm
Length
21.26 in
54 cm
Volume
1889.78 cubic inch
30967.92 cm3
Weight
4.3 lb
1.95 kg
Other Details
Cable Shielding
Tape Shield
Halogen Free
No
Number Of Conductors
1
Units Per Case
10.0
Usage Information
Application
Insulation, mechanical protection, repair
Material and Composition
Conductor Material
Aluminum
Material
EPDM Rubber
Shelf Life
1800
Color and Appearance
Product Color
Black
Packaging and Shipping
Case Quantity
10
