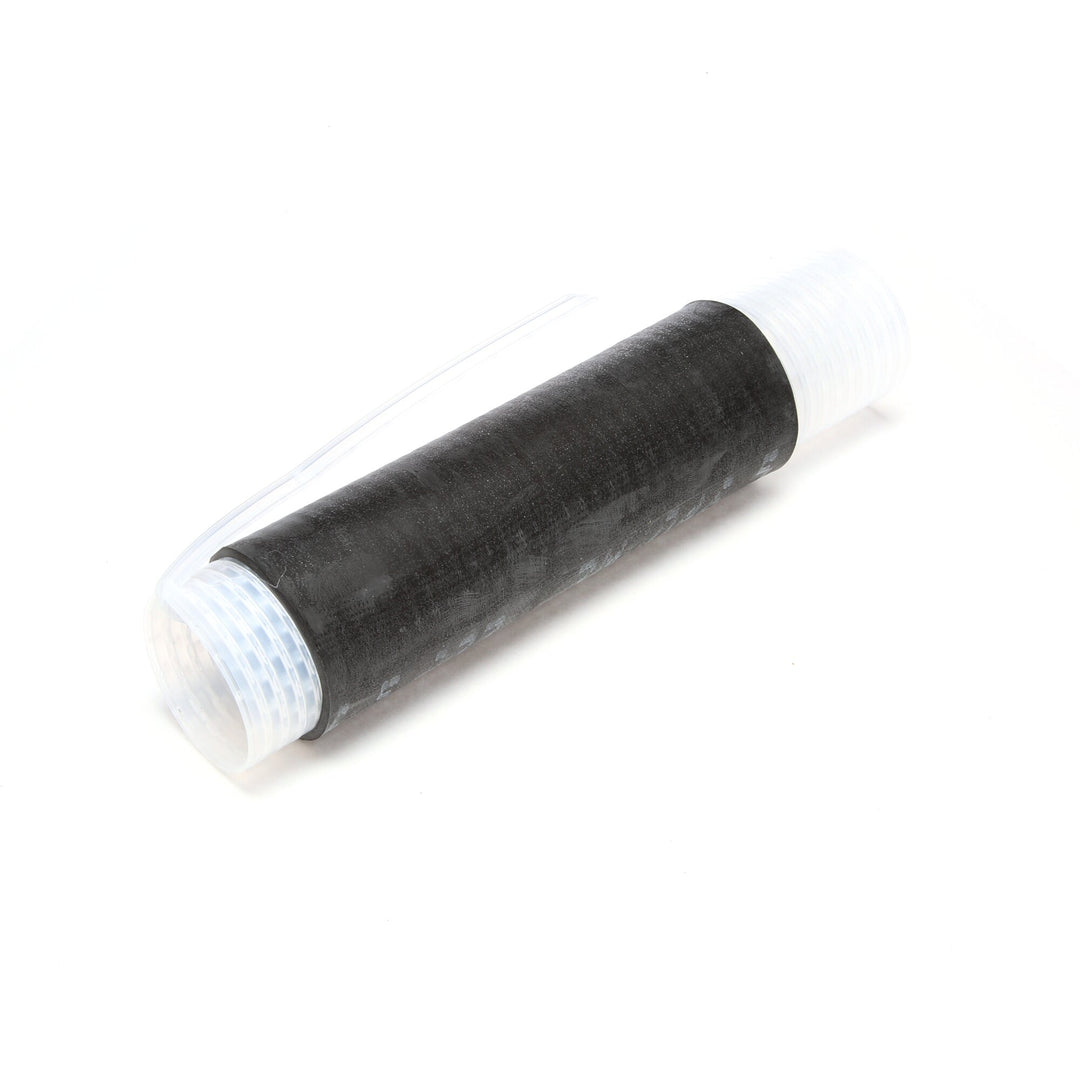

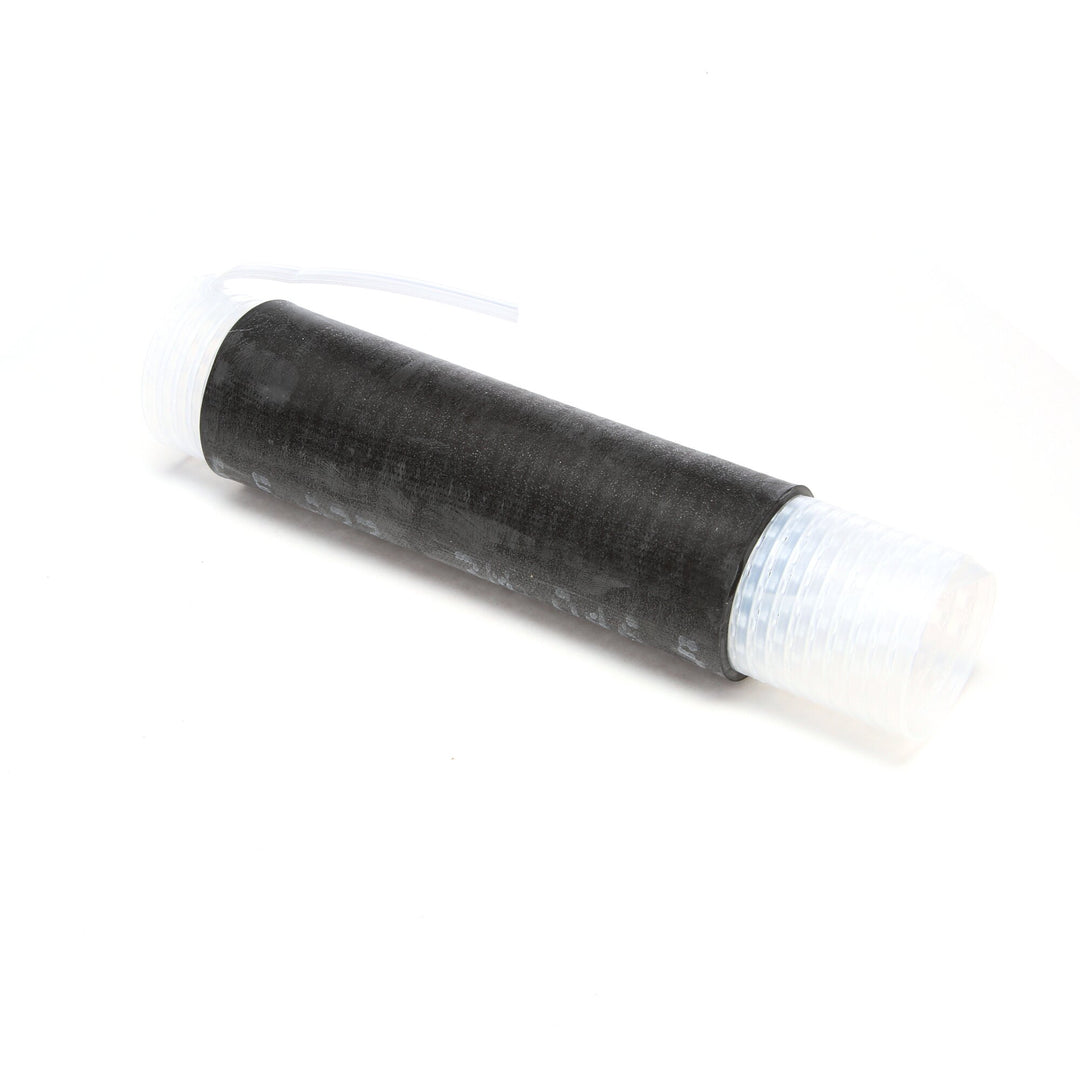

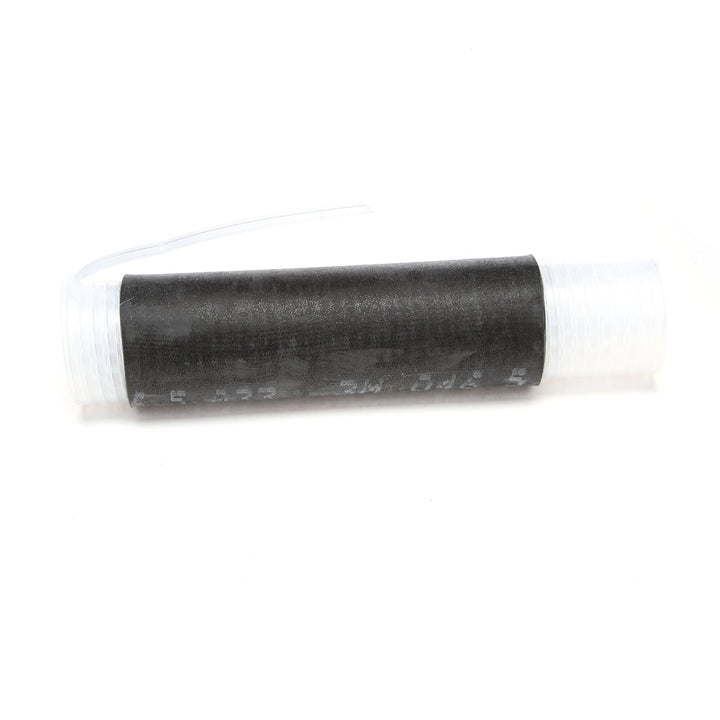

3M Cold Shrink Insulator 8427-6
3M Cold Shrink Insulator 8427-6
3M Cold Shrink Insulator 8427-6
3M Cold Shrink Insulator 8427-6
3M Cold Shrink Insulator 8427-6
3M Cold Shrink Insulator 8427-6
3M Cold Shrink Insulator 8427-6
3M Cold Shrink Insulator 8427-6
3M Cold Shrink Insulator 8427-6
3M Cold Shrink Insulator 8427-6

3M Cold Shrink Insulator 8427-6

Regular price
/

$215.99 USD & FREE Shipping.

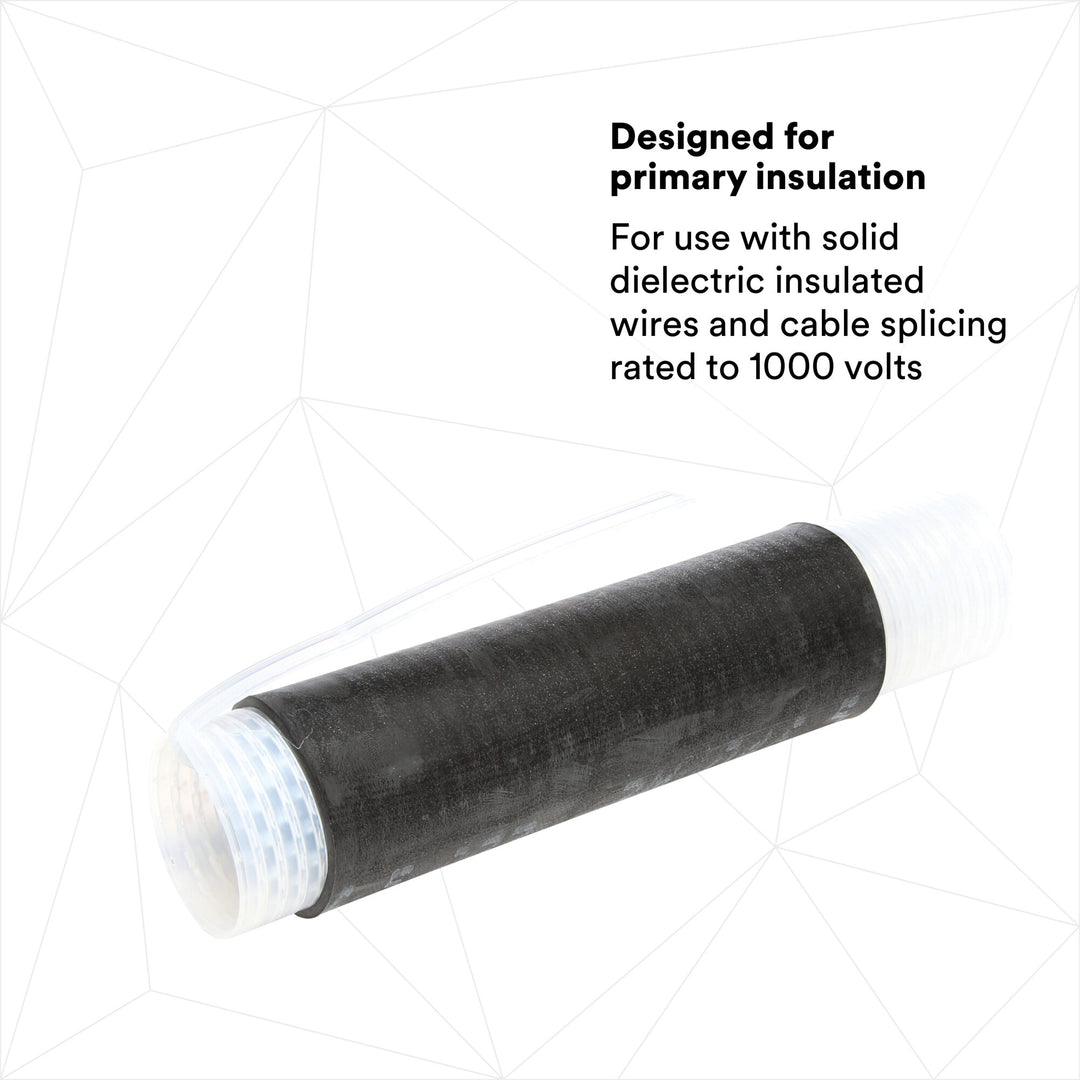

  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts

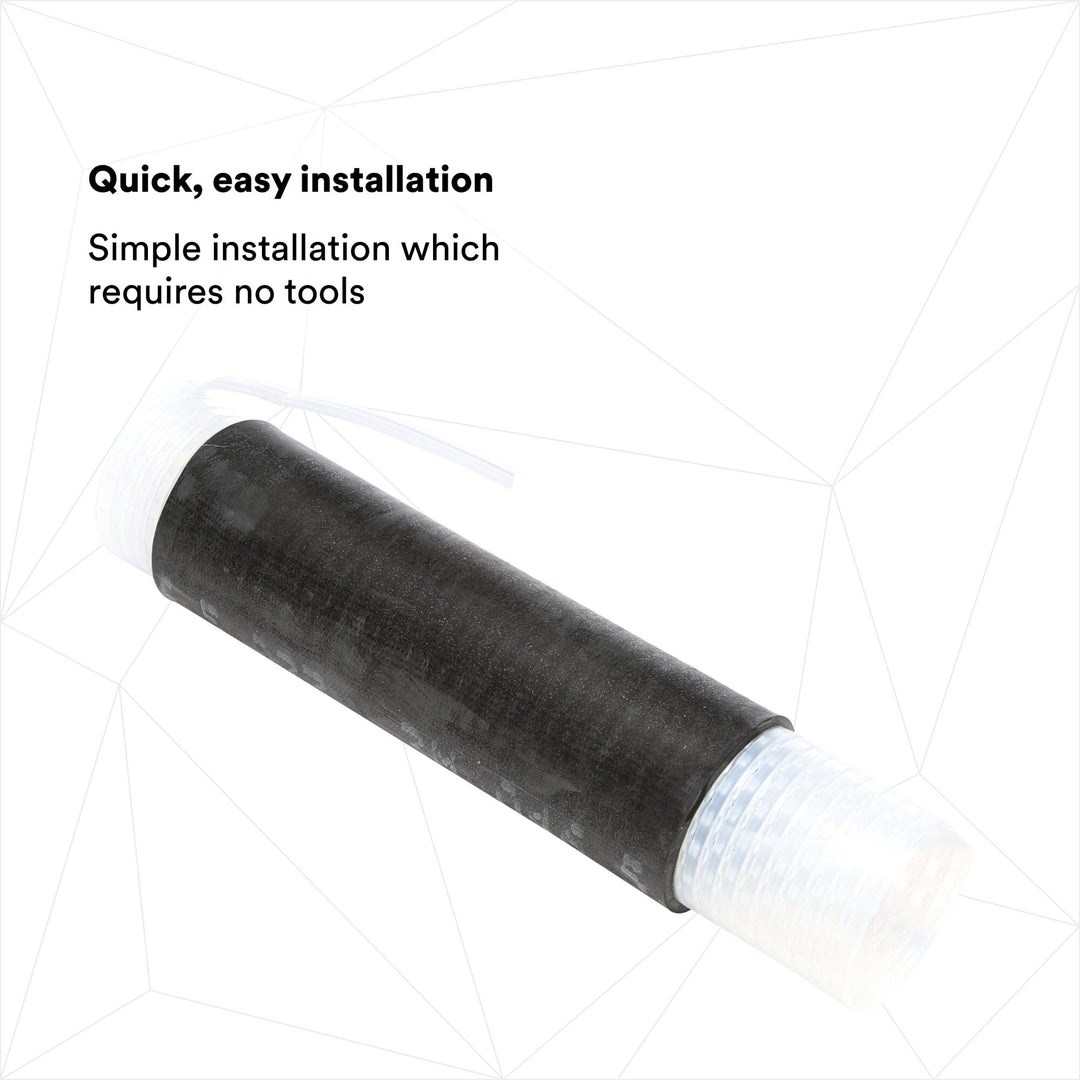

  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts

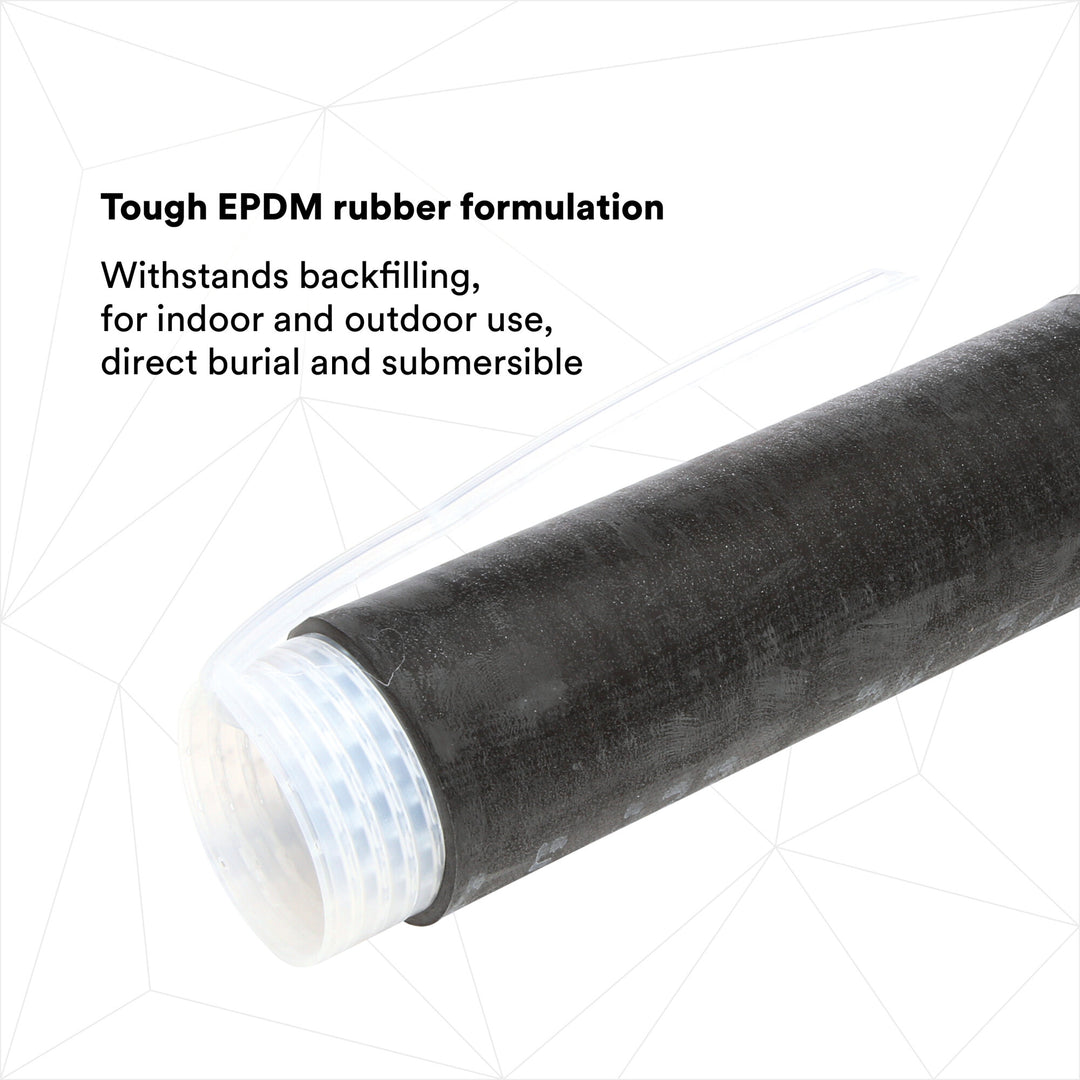

  • Made of black EPDM rubber
  • Made of EPDM rubber which contains no chlorides or sulfur

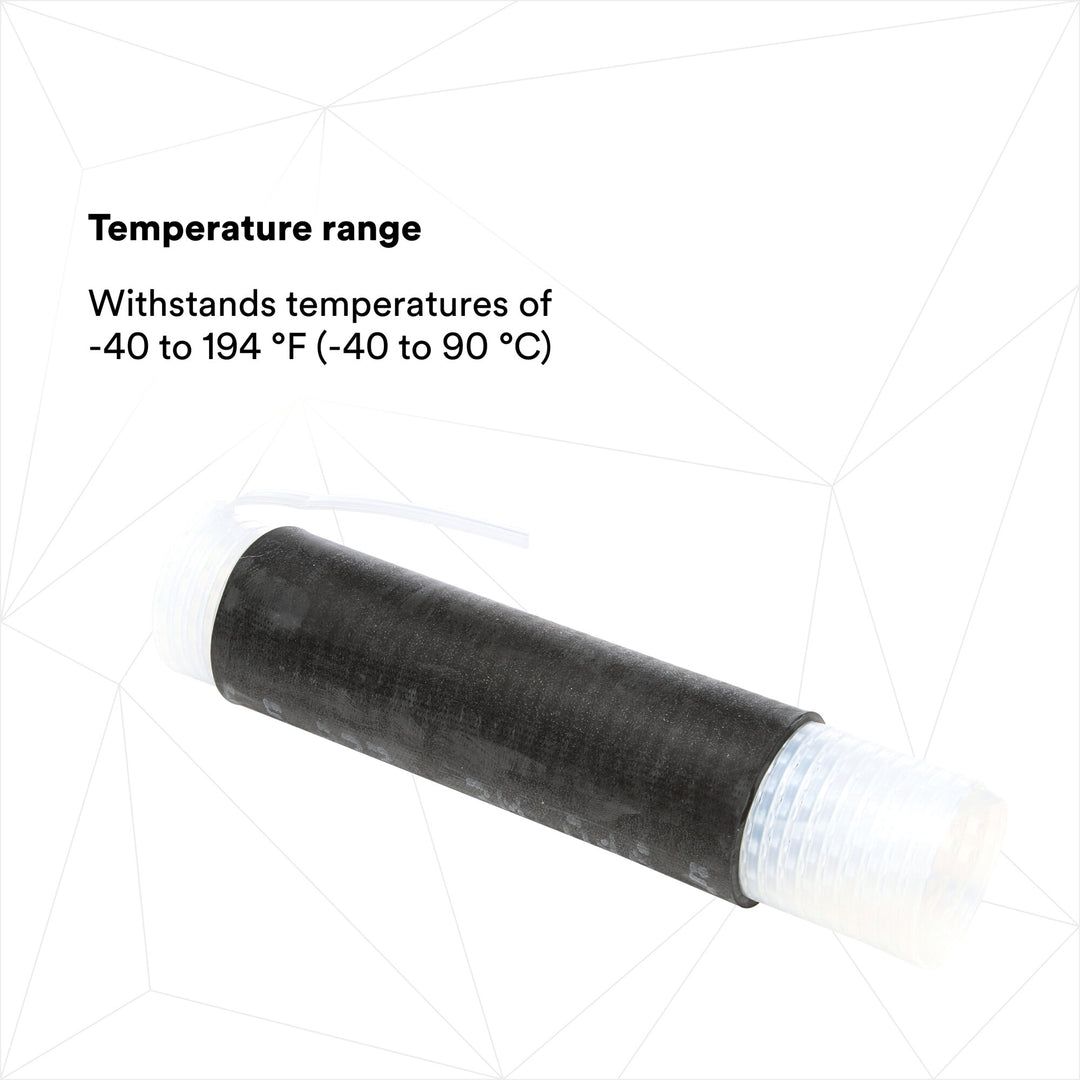

  • Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
  • Environmental sealing for communication and other non-electrical applications
Overview

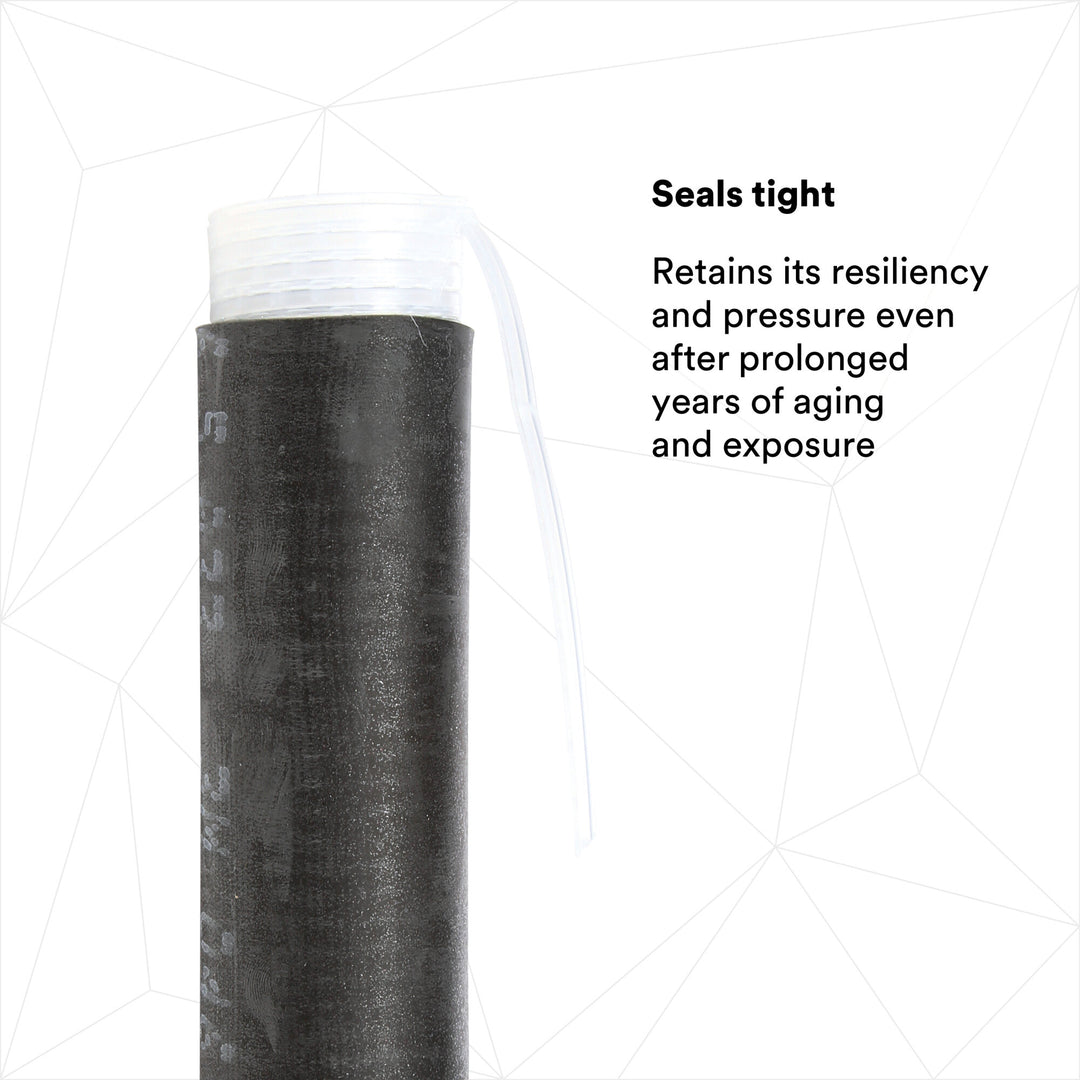

Make sure your connections are protected with a 3M 8420 Cold Shrink Connector Insulator. It guards against damage from ozone, acids and alkalis, and it provides primary electrical insulation for applications rated up to 1 kV. Its EPDM rubber construction provides rugged environmental sealing and makes it suitable for operating temperatures ranging from -40 to 194 degrees F (-40 to 90 degrees C).

3M Cold Shrink Insulator 8427-6

Specifications
General Information
Brand
3Mâ„¢
Cable Type
Non-Shieled, Solid Dielectric Power Cable
Model
Cold-shrink
Product Type
Splice
Splice Type
Cold Shrink
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Dimensions and Specifications
Inner Diameter After Shrink (Imperial)
0.67 in
Inner Diameter After Shrink (Metric)
17.02 mm
Inner Diameter Before Shrink (Imperial)
1.38 in
Inner Diameter Before Shrink (Metric)
35.1 mm
Maximum Connector Length
2.0 in
Maximum Connector Length (Metric)
50.8 mm
Maximum Operating Temperature (Celsius)
90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
194 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Overall Length (Imperial)
6 in
Overall Length (Metric)
152 mm
Relaxed Tube Length
6 in
Relaxed Tube Length (Metric)
152.4 mm
Voltage
1 kV
Voltage Application
Low Voltage
Overall Length Imperial
6.0
Width
8.15 in
20.7 cm
Height
6.97 in
17.7 cm
Length
12.44 in
31.6 cm
Volume
706.53 cubic inch
11577.92 cm3
Weight
32.8 oz
929.9 g
Other Details
Cable Shielding
Tape Shield
Halogen Free
No
Number Of Conductors
1
Units Per Case
10.0
Usage Information
Application
Insulation, mechanical protection, repair
Material and Composition
Conductor Material
Copper
Material
EPDM Rubber
Shelf Life
1800
Color and Appearance
Product Color
Black
Packaging and Shipping
Case Quantity
10
Resources
Datasheet
