Overview
Features

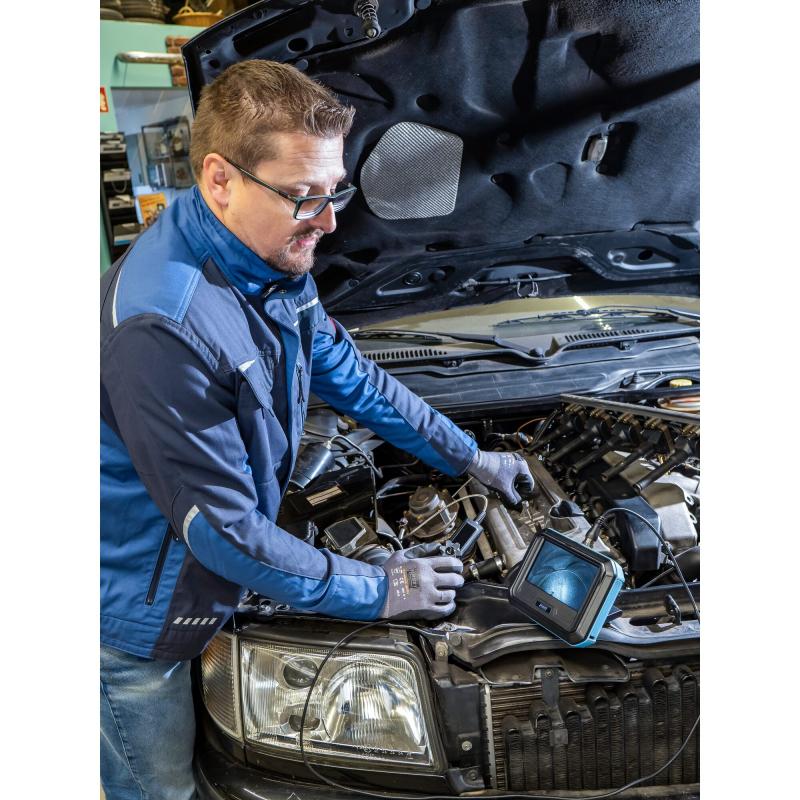

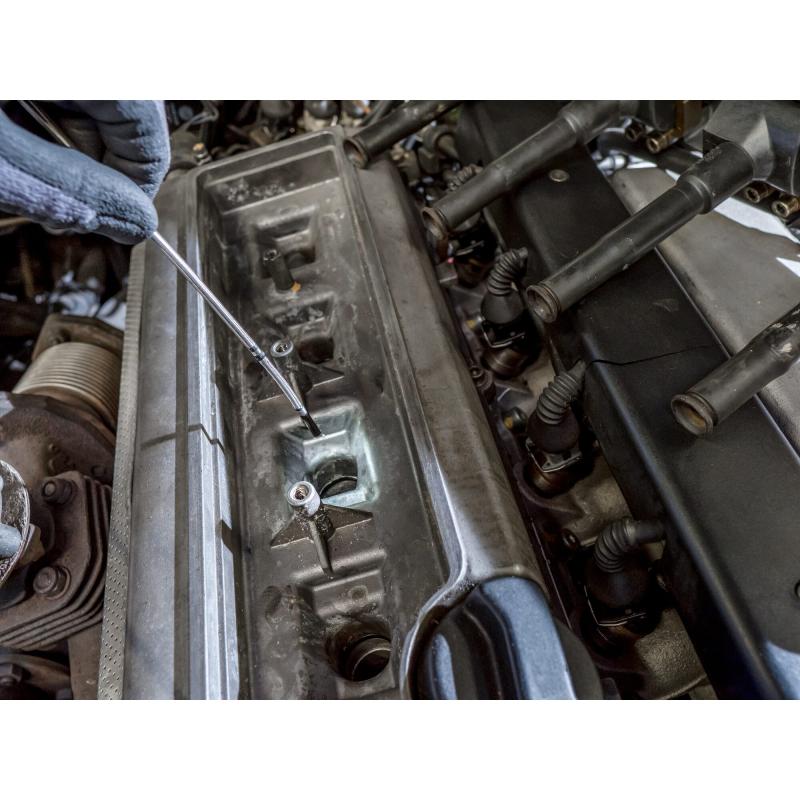

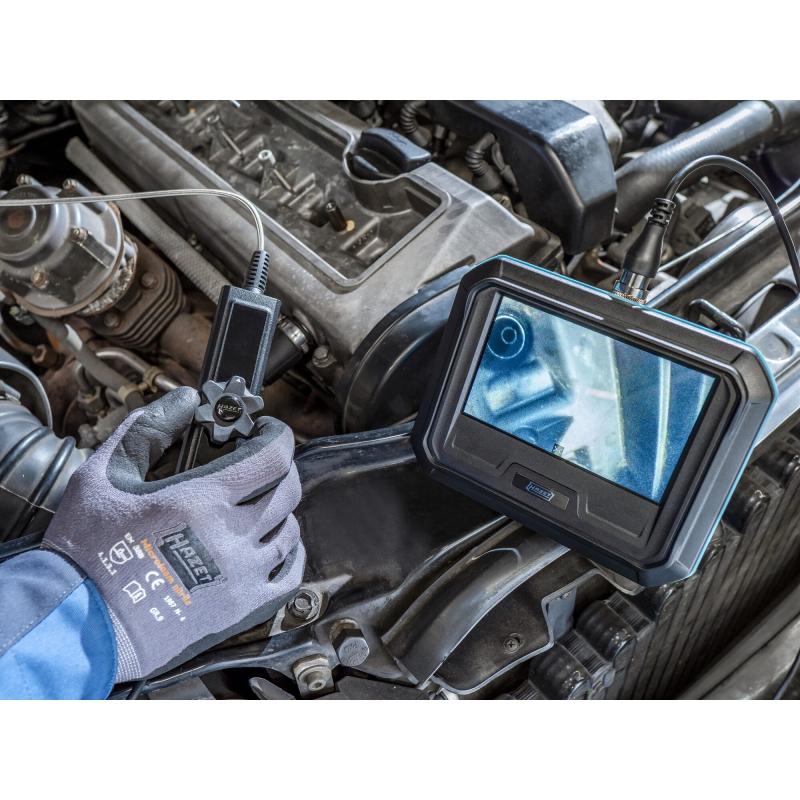

Diagnosis and documentation of cavities for damage assessment, Use of the system as a card reader / camera via USB connection to a PC..

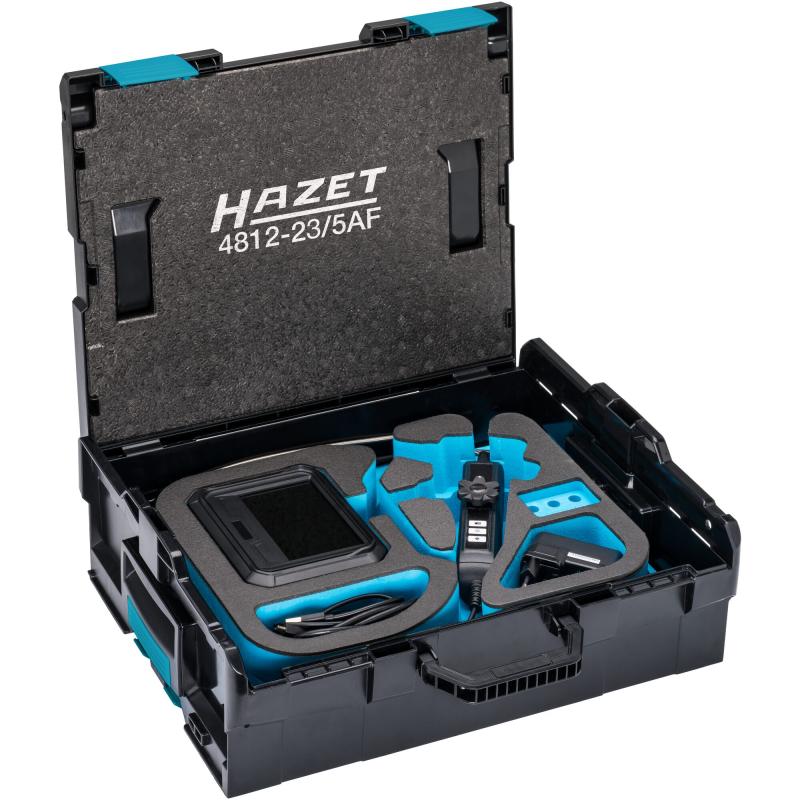

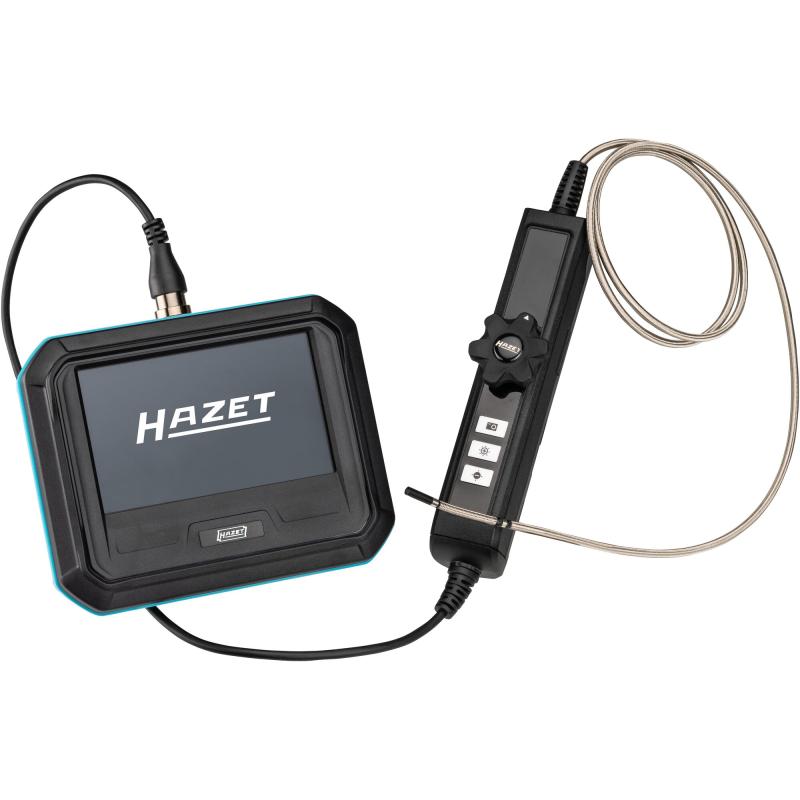

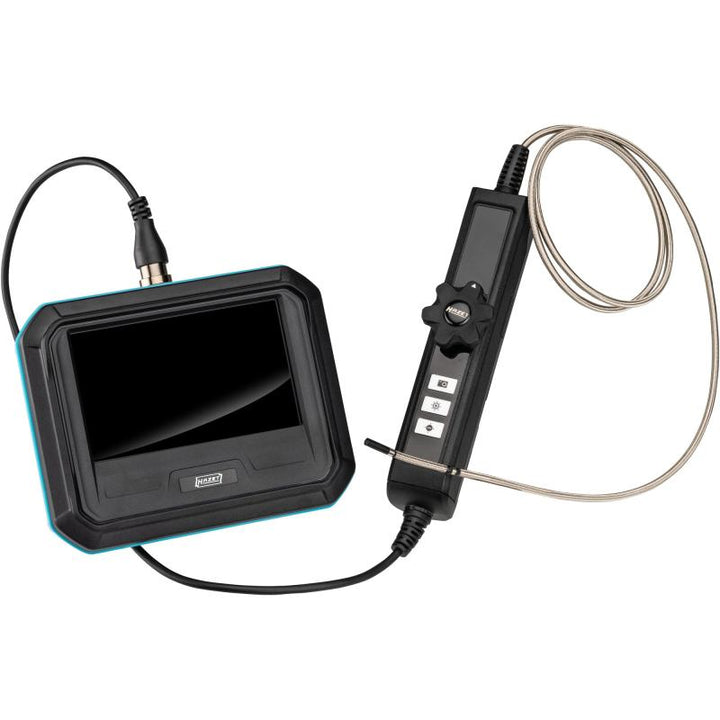

Hazet 4812-23/5AF HD Touchscreen Borescope Set with Swivelling Probe 180°, 3.9 mm
- Specialty Testers
- Hazet
- 4812-23/5AF
You may also like
Specifications
General Information
Brand
Hazet
Part Number
4812-23/5AF
Product Type
Specialty Testers
Number of Pieces
5
Packaging
Retail
Country of Origin
Germany
UPC
4000896249824
California Residents
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Weight
0.45 kg
1.00 lb
Details
Features
Improved fidelity to detail with HD camera
Touchscreen color display with Li-Ion battery and magnetic holder
Sunlight readable 127 mm (5 inch) touch display
Display resolution: 800 x 480 pixels
10-level brightness adjustment (5 + 5 boost)
Zoom: 3x
Recordings in 3 different time loops
Image format (jpg): 1920 x 1080 pixels
Video format (MP4): 1920 x 1080 pixels
Negative representation of the camera image
Data transfer: USB-C
HDMI port for video output
Video Output: Micro HDMI
Battery: Li-ion battery
Charging time 3.5 hours
Operating time when fully charged: 4 hours
Operating temperature: 10°C to 50°C
Operating humidity up to 90% (non-condensing)
IP protection class (basic device): IP54
Built-in microphone
Compatible with HAZET HD probes 4812-23AF and 4812-11FS
Weight: 705g
Dimensions: 162 x 128 x 46mm
Compact design
Easy to use
Swivel magnetic base: 180° adjustable
Thread for accommodating a tripod screw connection (1/4″) in the magnetic base
reset button
Battery capacity display
Auto power off in 4 different times optional
Recording videos (MOV format) and photos (JPEG format)
Image format: JPG, 1920 x 1080 pixels with optional watermark and timestamp
Video format: MP4, 1920 x 1080 pixels with optional watermark, timestamp and audio
You can insert your own logo as a watermark (160 x 160 pixels)
mirroring of the camera image
Labeling of photos on the touchscreen
Creation of folders on the touch screen
DC Power Adapter: 5V/3A
Charger: USB charging adapter DC-5V/3A
28 menu languages selectable
Use of the system as a card reader / camera via USB connection to a PC.
PC software to download
L Boxx 190 L-136
Number of tools: 5
Touchscreen color display with Li-Ion battery and magnetic holder
Sunlight readable 127 mm (5 inch) touch display
Display resolution: 800 x 480 pixels
10-level brightness adjustment (5 + 5 boost)
Zoom: 3x
Recordings in 3 different time loops
Image format (jpg): 1920 x 1080 pixels
Video format (MP4): 1920 x 1080 pixels
Negative representation of the camera image
Data transfer: USB-C
HDMI port for video output
Video Output: Micro HDMI
Battery: Li-ion battery
Charging time 3.5 hours
Operating time when fully charged: 4 hours
Operating temperature: 10°C to 50°C
Operating humidity up to 90% (non-condensing)
IP protection class (basic device): IP54
Built-in microphone
Compatible with HAZET HD probes 4812-23AF and 4812-11FS
Weight: 705g
Dimensions: 162 x 128 x 46mm
Compact design
Easy to use
Swivel magnetic base: 180° adjustable
Thread for accommodating a tripod screw connection (1/4″) in the magnetic base
reset button
Battery capacity display
Auto power off in 4 different times optional
Recording videos (MOV format) and photos (JPEG format)
Image format: JPG, 1920 x 1080 pixels with optional watermark and timestamp
Video format: MP4, 1920 x 1080 pixels with optional watermark, timestamp and audio
You can insert your own logo as a watermark (160 x 160 pixels)
mirroring of the camera image
Labeling of photos on the touchscreen
Creation of folders on the touch screen
DC Power Adapter: 5V/3A
Charger: USB charging adapter DC-5V/3A
28 menu languages selectable
Use of the system as a card reader / camera via USB connection to a PC.
PC software to download
L Boxx 190 L-136
Number of tools: 5
Why would you use this tool for ?
About manufacturer
Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
